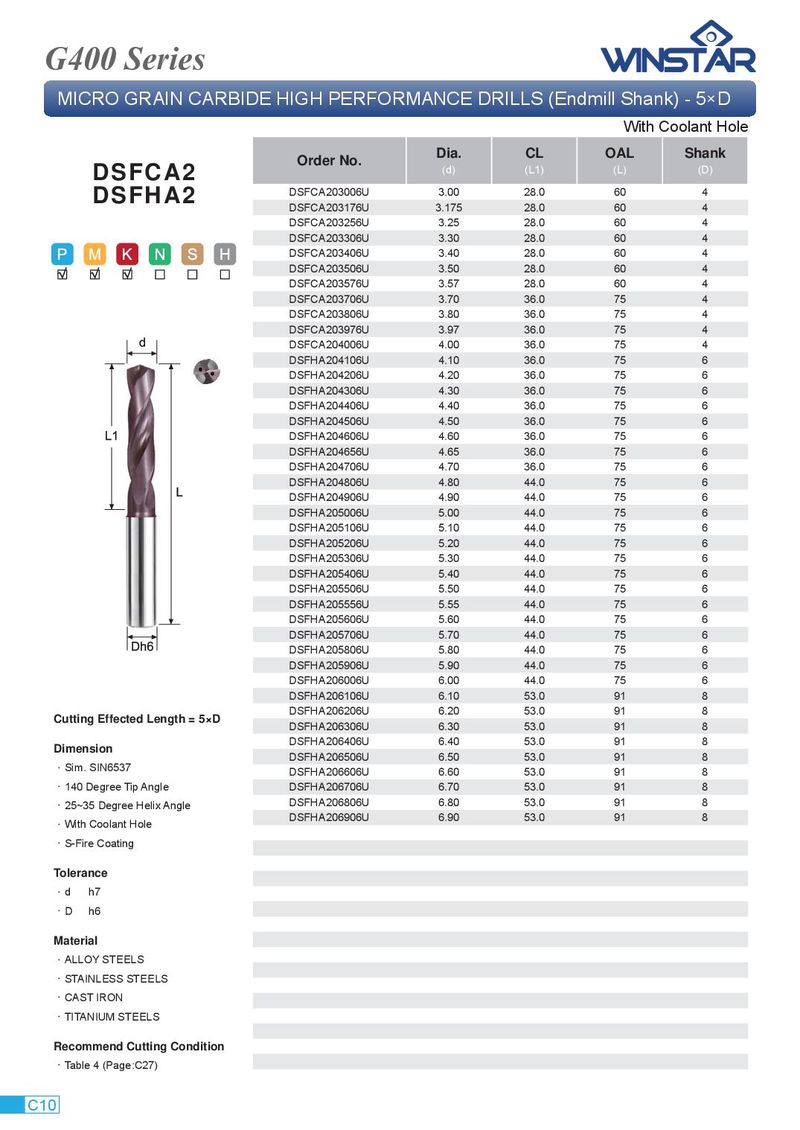

G400 Series MICRO GRAIN CARBIDE HIGH PERFORMANCE DRILLS (Endmill Shank) - 5×D With Coolant Hole Dia. CL OAL Shank Order No. (d) (L1) (L) (D) DSFCA2 DSFCA203006U 3.00 28.0 60 4 DSFHA2 DSFCA203176U 3.175 28.0 60 4 DSFCA203256U 3.25 28.0 60 4 DSFCA203306U 3.30 28.0 60 4 DSFCA203406U 3.40 28.0 60 4 DSFCA203506U 3.50 28.0 60 4 DSFCA203576U 3.57 28.0 60 4 DSFCA203706U 3.70 36.0 75 4 DSFCA203806U 3.80 36.0 75 4 DSFCA203976U 3.97 36.0 75 4 DSFCA204006U 4.00 36.0 75 4 DSFHA204106U 4.10 36.0 75 6 DSFHA204206U 4.20 36.0 75 6 DSFHA204306U 4.30 36.0 75 6 DSFHA204406U 4.40 36.0 75 6 DSFHA204506U 4.50 36.0 75 6 DSFHA204606U 4.60 36.0 75 6 DSFHA204656U 4.65 36.0 75 6 DSFHA204706U 4.70 36.0 75 6 DSFHA204806U 4.80 44.0 75 6 DSFHA204906U 4.90 44.0 75 6 DSFHA205006U 5.00 44.0 75 6 DSFHA205106U 5.10 44.0 75 6 DSFHA205206U 5.20 44.0 75 6 DSFHA205306U 5.30 44.0 75 6 DSFHA205406U 5.40 44.0 75 6 DSFHA205506U 5.50 44.0 75 6 DSFHA205556U 5.55 44.0 75 6 DSFHA205606U 5.60 44.0 75 6 DSFHA205706U 5.70 44.0 75 6 DSFHA205806U 5.80 44.0 75 6 DSFHA205906U 5.90 44.0 75 6 DSFHA206006U 6.00 44.0 75 6 DSFHA206106U 6.10 53.0 91 8 DSFHA206206U 6.20 53.0 91 8 Cutting Effected Length = 5×D DSFHA206306U 6.30 53.0 91 8 DSFHA206406U 6.40 53.0 91 8 Dimension DSFHA206506U 6.50 53.0 91 8 ． Sim. SIN6537 DSFHA206606U 6.60 53.0 91 8 ． 140 Degree Tip Angle DSFHA206706U 6.70 53.0 91 8 ． 25~35 Degree Helix Angle DSFHA206806U 6.80 53.0 91 8 DSFHA206906U 6.90 53.0 91 8 ． With Coolant Hole ． S-Fire Coating Tolerance ． d h7 ． D h6 Material ． ALLOY STEELS ． STAINLESS STEELS ． CAST IRON ． TITANIUM STEELS Recommend Cutting Condition ． Table 4 (Page:C27) C10
