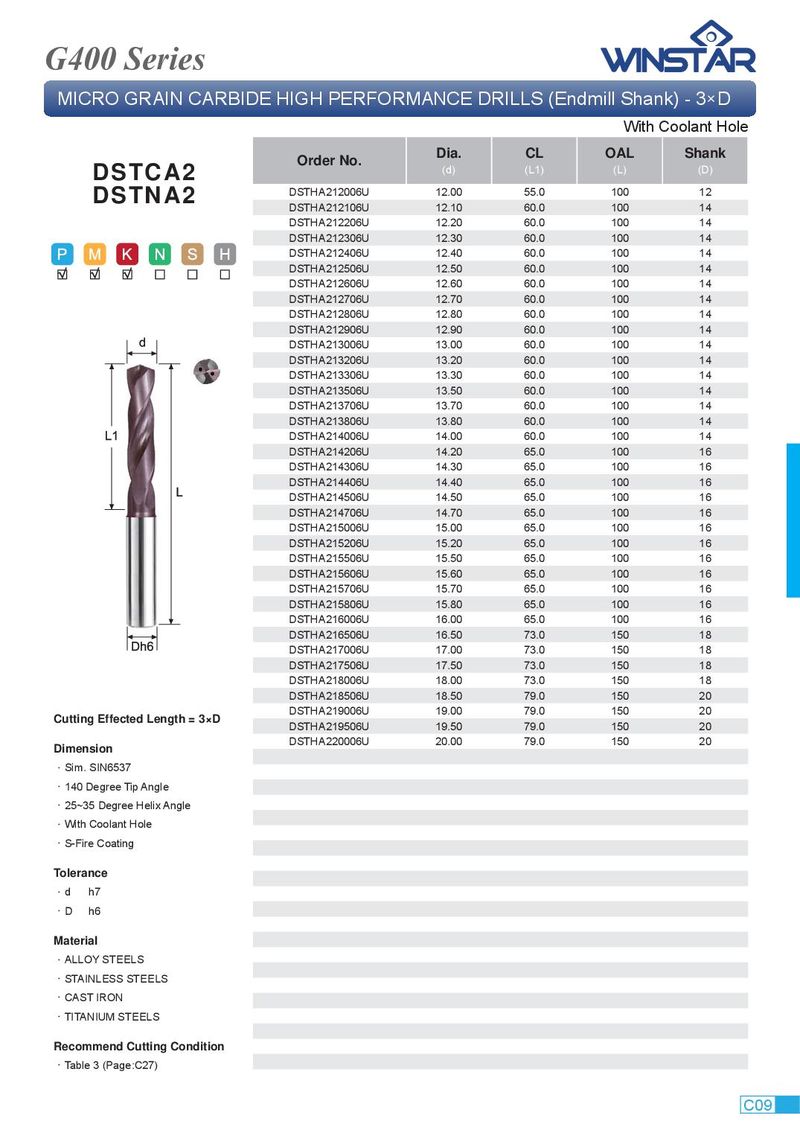

G400 Series MICRO GRAIN CARBIDE HIGH PERFORMANCE DRILLS (Endmill Shank) - 3×D With Coolant Hole Dia. CL OAL Shank Order No. (d) (L1) (L) (D) DSTCA2 DSTHA212006U 12.00 55.0 100 12 DSTNA2 DSTHA212106U 12.10 60.0 100 14 DSTHA212206U 12.20 60.0 100 14 DSTHA212306U 12.30 60.0 100 14 DSTHA212406U 12.40 60.0 100 14 DSTHA212506U 12.50 60.0 100 14 DSTHA212606U 12.60 60.0 100 14 DSTHA212706U 12.70 60.0 100 14 DSTHA212806U 12.80 60.0 100 14 DSTHA212906U 12.90 60.0 100 14 DSTHA213006U 13.00 60.0 100 14 DSTHA213206U 13.20 60.0 100 14 DSTHA213306U 13.30 60.0 100 14 DSTHA213506U 13.50 60.0 100 14 DSTHA213706U 13.70 60.0 100 14 DSTHA213806U 13.80 60.0 100 14 DSTHA214006U 14.00 60.0 100 14 DSTHA214206U 14.20 65.0 100 16 DSTHA214306U 14.30 65.0 100 16 DSTHA214406U 14.40 65.0 100 16 DSTHA214506U 14.50 65.0 100 16 DSTHA214706U 14.70 65.0 100 16 DSTHA215006U 15.00 65.0 100 16 DSTHA215206U 15.20 65.0 100 16 DSTHA215506U 15.50 65.0 100 16 DSTHA215606U 15.60 65.0 100 16 DSTHA215706U 15.70 65.0 100 16 DSTHA215806U 15.80 65.0 100 16 DSTHA216006U 16.00 65.0 100 16 DSTHA216506U 16.50 73.0 150 18 DSTHA217006U 17.00 73.0 150 18 DSTHA217506U 17.50 73.0 150 18 DSTHA218006U 18.00 73.0 150 18 DSTHA218506U 18.50 79.0 150 20 DSTHA219006U 19.00 79.0 150 20 Cutting Effected Length = 3×D DSTHA219506U 19.50 79.0 150 20 DSTHA220006U 20.00 79.0 150 20 Dimension ． Sim. SIN6537 ． 140 Degree Tip Angle ． 25~35 Degree Helix Angle ． With Coolant Hole ． S-Fire Coating Tolerance ． d h7 ． D h6 Material ． ALLOY STEELS ． STAINLESS STEELS ． CAST IRON ． TITANIUM STEELS Recommend Cutting Condition ． Table 3 (Page:C27) C09
