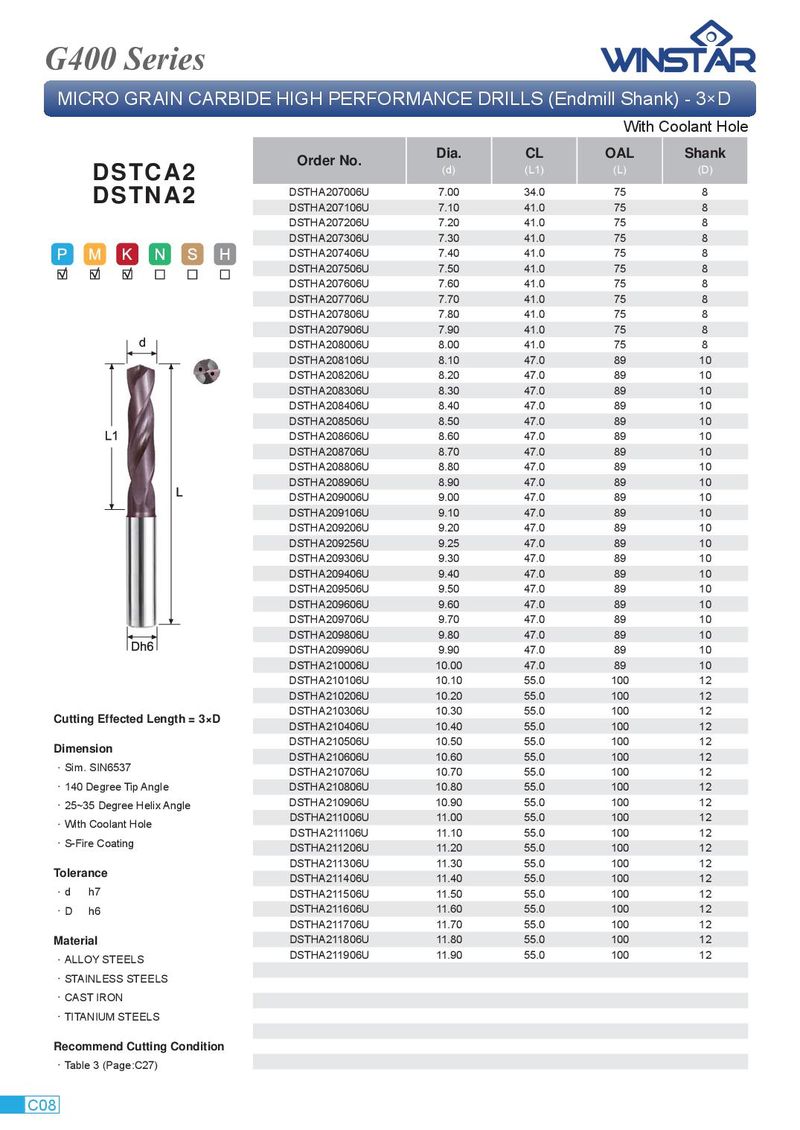

G400 Series MICRO GRAIN CARBIDE HIGH PERFORMANCE DRILLS (Endmill Shank) - 3×D With Coolant Hole Dia. CL OAL Shank Order No. (d) (L1) (L) (D) DSTCA2 DSTHA207006U 7.00 34.0 75 8 DSTNA2 DSTHA207106U 7.10 41.0 75 8 DSTHA207206U 7.20 41.0 75 8 DSTHA207306U 7.30 41.0 75 8 DSTHA207406U 7.40 41.0 75 8 DSTHA207506U 7.50 41.0 75 8 DSTHA207606U 7.60 41.0 75 8 DSTHA207706U 7.70 41.0 75 8 DSTHA207806U 7.80 41.0 75 8 DSTHA207906U 7.90 41.0 75 8 DSTHA208006U 8.00 41.0 75 8 DSTHA208106U 8.10 47.0 89 10 DSTHA208206U 8.20 47.0 89 10 DSTHA208306U 8.30 47.0 89 10 DSTHA208406U 8.40 47.0 89 10 DSTHA208506U 8.50 47.0 89 10 DSTHA208606U 8.60 47.0 89 10 DSTHA208706U 8.70 47.0 89 10 DSTHA208806U 8.80 47.0 89 10 DSTHA208906U 8.90 47.0 89 10 DSTHA209006U 9.00 47.0 89 10 DSTHA209106U 9.10 47.0 89 10 DSTHA209206U 9.20 47.0 89 10 DSTHA209256U 9.25 47.0 89 10 DSTHA209306U 9.30 47.0 89 10 DSTHA209406U 9.40 47.0 89 10 DSTHA209506U 9.50 47.0 89 10 DSTHA209606U 9.60 47.0 89 10 DSTHA209706U 9.70 47.0 89 10 DSTHA209806U 9.80 47.0 89 10 DSTHA209906U 9.90 47.0 89 10 DSTHA210006U 10.00 47.0 89 10 DSTHA210106U 10.10 55.0 100 12 DSTHA210206U 10.20 55.0 100 12 DSTHA210306U 10.30 55.0 100 12 Cutting Effected Length = 3×D DSTHA210406U 10.40 55.0 100 12 DSTHA210506U 10.50 55.0 100 12 Dimension DSTHA210606U 10.60 55.0 100 12 ． Sim. SIN6537 DSTHA210706U 10.70 55.0 100 12 ． 140 Degree Tip Angle DSTHA210806U 10.80 55.0 100 12 ． 25~35 Degree Helix Angle DSTHA210906U 10.90 55.0 100 12 DSTHA211006U 11.00 55.0 100 12 ． With Coolant Hole DSTHA211106U 11.10 55.0 100 12 ． S-Fire Coating DSTHA211206U 11.20 55.0 100 12 DSTHA211306U 11.30 55.0 100 12 Tolerance DSTHA211406U 11.40 55.0 100 12 ． d h7 DSTHA211506U 11.50 55.0 100 12 ． D h6 DSTHA211606U 11.60 55.0 100 12 DSTHA211706U 11.70 55.0 100 12 Material DSTHA211806U 11.80 55.0 100 12 DSTHA211906U 11.90 55.0 100 12 ． ALLOY STEELS ． STAINLESS STEELS ． CAST IRON ． TITANIUM STEELS Recommend Cutting Condition ． Table 3 (Page:C27) C08
