Общий каталог Winstar 2015 - 2016 - страница 179

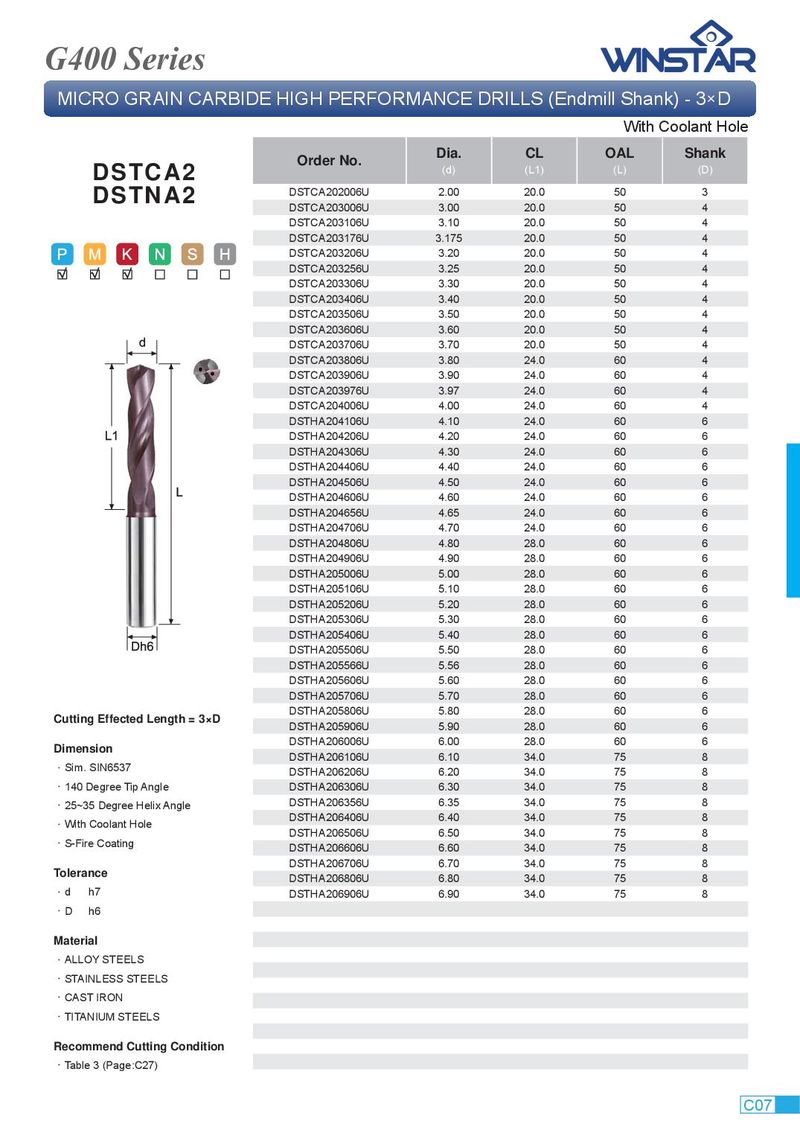

G400 Series MICRO GRAIN CARBIDE HIGH PERFORMANCE DRILLS (Endmill Shank) - 3×D With Coolant Hole Dia. CL OAL Shank Order No. (d) (L1) (L) (D) DSTCA2 DSTCA202006U 2.00 20.0 50 3 DSTNA2 DSTCA203006U 3.00 20.0 50 4 DSTCA203106U 3.10 20.0 50 4 DSTCA203176U 3.175 20.0 50 4 DSTCA203206U 3.20 20.0 50 4 DSTCA203256U 3.25 20.0 50 4 DSTCA203306U 3.30 20.0 50 4 DSTCA203406U 3.40 20.0 50 4 DSTCA203506U 3.50 20.0 50 4 DSTCA203606U 3.60 20.0 50 4 DSTCA203706U 3.70 20.0 50 4 DSTCA203806U 3.80 24.0 60 4 DSTCA203906U 3.90 24.0 60 4 DSTCA203976U 3.97 24.0 60 4 DSTCA204006U 4.00 24.0 60 4 DSTHA204106U 4.10 24.0 60 6 DSTHA204206U 4.20 24.0 60 6 DSTHA204306U 4.30 24.0 60 6 DSTHA204406U 4.40 24.0 60 6 DSTHA204506U 4.50 24.0 60 6 DSTHA204606U 4.60 24.0 60 6 DSTHA204656U 4.65 24.0 60 6 DSTHA204706U 4.70 24.0 60 6 DSTHA204806U 4.80 28.0 60 6 DSTHA204906U 4.90 28.0 60 6 DSTHA205006U 5.00 28.0 60 6 DSTHA205106U 5.10 28.0 60 6 DSTHA205206U 5.20 28.0 60 6 DSTHA205306U 5.30 28.0 60 6 DSTHA205406U 5.40 28.0 60 6 DSTHA205506U 5.50 28.0 60 6 DSTHA205566U 5.56 28.0 60 6 DSTHA205606U 5.60 28.0 60 6 DSTHA205706U 5.70 28.0 60 6 DSTHA205806U 5.80 28.0 60 6 Cutting Effected Length = 3×D DSTHA205906U 5.90 28.0 60 6 DSTHA206006U 6.00 28.0 60 6 Dimension DSTHA206106U 6.10 34.0 75 8 ． Sim. SIN6537 DSTHA206206U 6.20 34.0 75 8 ． 140 Degree Tip Angle DSTHA206306U 6.30 34.0 75 8 ． 25~35 Degree Helix Angle DSTHA206356U 6.35 34.0 75 8 DSTHA206406U 6.40 34.0 75 8 ． With Coolant Hole DSTHA206506U 6.50 34.0 75 8 ． S-Fire Coating DSTHA206606U 6.60 34.0 75 8 DSTHA206706U 6.70 34.0 75 8 Tolerance DSTHA206806U 6.80 34.0 75 8 ． d h7 DSTHA206906U 6.90 34.0 75 8 ． D h6 Material ． ALLOY STEELS ． STAINLESS STEELS ． CAST IRON ． TITANIUM STEELS Recommend Cutting Condition ． Table 3 (Page:C27) C07
