Общий каталог Winstar 2015 - 2016 - страница 178

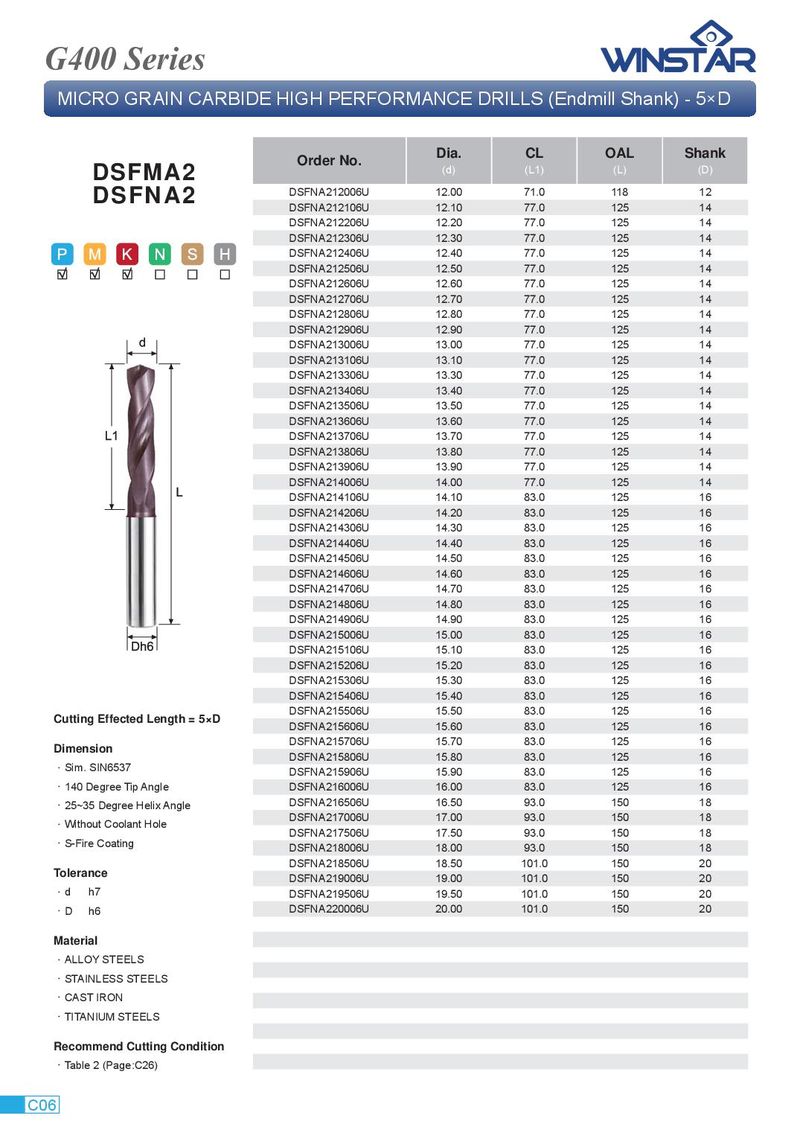

G400 Series MICRO GRAIN CARBIDE HIGH PERFORMANCE DRILLS (Endmill Shank) - 5×D Dia. CL OAL Shank Order No. (d) (L1) (L) (D) DSFMA2 DSFNA212006U 12.00 71.0 118 12 DSFNA2 DSFNA212106U 12.10 77.0 125 14 DSFNA212206U 12.20 77.0 125 14 DSFNA212306U 12.30 77.0 125 14 DSFNA212406U 12.40 77.0 125 14 DSFNA212506U 12.50 77.0 125 14 DSFNA212606U 12.60 77.0 125 14 DSFNA212706U 12.70 77.0 125 14 DSFNA212806U 12.80 77.0 125 14 DSFNA212906U 12.90 77.0 125 14 DSFNA213006U 13.00 77.0 125 14 DSFNA213106U 13.10 77.0 125 14 DSFNA213306U 13.30 77.0 125 14 DSFNA213406U 13.40 77.0 125 14 DSFNA213506U 13.50 77.0 125 14 DSFNA213606U 13.60 77.0 125 14 DSFNA213706U 13.70 77.0 125 14 DSFNA213806U 13.80 77.0 125 14 DSFNA213906U 13.90 77.0 125 14 DSFNA214006U 14.00 77.0 125 14 DSFNA214106U 14.10 83.0 125 16 DSFNA214206U 14.20 83.0 125 16 DSFNA214306U 14.30 83.0 125 16 DSFNA214406U 14.40 83.0 125 16 DSFNA214506U 14.50 83.0 125 16 DSFNA214606U 14.60 83.0 125 16 DSFNA214706U 14.70 83.0 125 16 DSFNA214806U 14.80 83.0 125 16 DSFNA214906U 14.90 83.0 125 16 DSFNA215006U 15.00 83.0 125 16 DSFNA215106U 15.10 83.0 125 16 DSFNA215206U 15.20 83.0 125 16 DSFNA215306U 15.30 83.0 125 16 DSFNA215406U 15.40 83.0 125 16 DSFNA215506U 15.50 83.0 125 16 Cutting Effected Length = 5×D DSFNA215606U 15.60 83.0 125 16 DSFNA215706U 15.70 83.0 125 16 Dimension DSFNA215806U 15.80 83.0 125 16 ． Sim. SIN6537 DSFNA215906U 15.90 83.0 125 16 ． 140 Degree Tip Angle DSFNA216006U 16.00 83.0 125 16 ． 25~35 Degree Helix Angle DSFNA216506U 16.50 93.0 150 18 DSFNA217006U 17.00 93.0 150 18 ． Without Coolant Hole DSFNA217506U 17.50 93.0 150 18 ． S-Fire Coating DSFNA218006U 18.00 93.0 150 18 DSFNA218506U 18.50 101.0 150 20 Tolerance DSFNA219006U 19.00 101.0 150 20 ． d h7 DSFNA219506U 19.50 101.0 150 20 ． D h6 DSFNA220006U 20.00 101.0 150 20 Material ． ALLOY STEELS ． STAINLESS STEELS ． CAST IRON ． TITANIUM STEELS Recommend Cutting Condition ． Table 2 (Page:C26) C06
