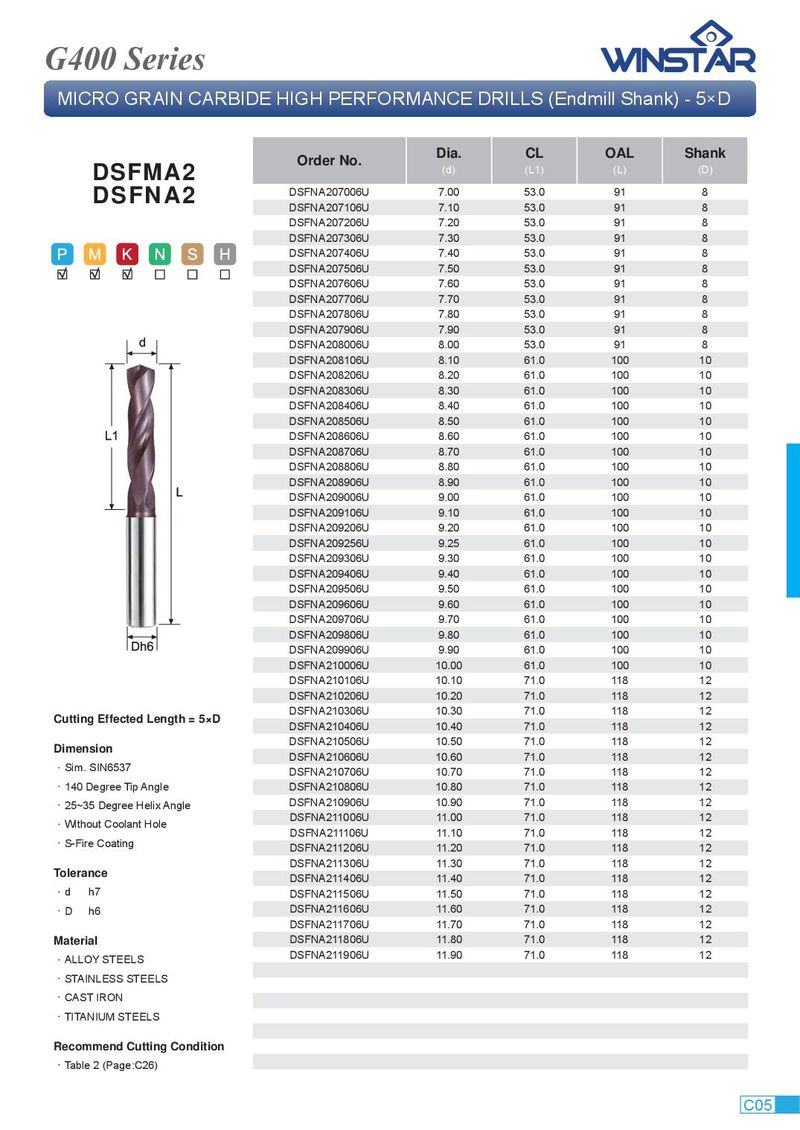

G400 Series MICRO GRAIN CARBIDE HIGH PERFORMANCE DRILLS (Endmill Shank) - 5×D Dia. CL OAL Shank Order No. (d) (L1) (L) (D) DSFMA2 DSFNA207006U 7.00 53.0 91 8 DSFNA2 DSFNA207106U 7.10 53.0 91 8 DSFNA207206U 7.20 53.0 91 8 DSFNA207306U 7.30 53.0 91 8 DSFNA207406U 7.40 53.0 91 8 DSFNA207506U 7.50 53.0 91 8 DSFNA207606U 7.60 53.0 91 8 DSFNA207706U 7.70 53.0 91 8 DSFNA207806U 7.80 53.0 91 8 DSFNA207906U 7.90 53.0 91 8 DSFNA208006U 8.00 53.0 91 8 DSFNA208106U 8.10 61.0 100 10 DSFNA208206U 8.20 61.0 100 10 DSFNA208306U 8.30 61.0 100 10 DSFNA208406U 8.40 61.0 100 10 DSFNA208506U 8.50 61.0 100 10 DSFNA208606U 8.60 61.0 100 10 DSFNA208706U 8.70 61.0 100 10 DSFNA208806U 8.80 61.0 100 10 DSFNA208906U 8.90 61.0 100 10 DSFNA209006U 9.00 61.0 100 10 DSFNA209106U 9.10 61.0 100 10 DSFNA209206U 9.20 61.0 100 10 DSFNA209256U 9.25 61.0 100 10 DSFNA209306U 9.30 61.0 100 10 DSFNA209406U 9.40 61.0 100 10 DSFNA209506U 9.50 61.0 100 10 DSFNA209606U 9.60 61.0 100 10 DSFNA209706U 9.70 61.0 100 10 DSFNA209806U 9.80 61.0 100 10 DSFNA209906U 9.90 61.0 100 10 DSFNA210006U 10.00 61.0 100 10 DSFNA210106U 10.10 71.0 118 12 DSFNA210206U 10.20 71.0 118 12 DSFNA210306U 10.30 71.0 118 12 Cutting Effected Length = 5×D DSFNA210406U 10.40 71.0 118 12 DSFNA210506U 10.50 71.0 118 12 Dimension DSFNA210606U 10.60 71.0 118 12 ． Sim. SIN6537 DSFNA210706U 10.70 71.0 118 12 ． 140 Degree Tip Angle DSFNA210806U 10.80 71.0 118 12 ． 25~35 Degree Helix Angle DSFNA210906U 10.90 71.0 118 12 DSFNA211006U 11.00 71.0 118 12 ． Without Coolant Hole DSFNA211106U 11.10 71.0 118 12 ． S-Fire Coating DSFNA211206U 11.20 71.0 118 12 DSFNA211306U 11.30 71.0 118 12 Tolerance DSFNA211406U 11.40 71.0 118 12 ． d h7 DSFNA211506U 11.50 71.0 118 12 ． D h6 DSFNA211606U 11.60 71.0 118 12 DSFNA211706U 11.70 71.0 118 12 Material DSFNA211806U 11.80 71.0 118 12 DSFNA211906U 11.90 71.0 118 12 ． ALLOY STEELS ． STAINLESS STEELS ． CAST IRON ． TITANIUM STEELS Recommend Cutting Condition ． Table 2 (Page:C26) C05
