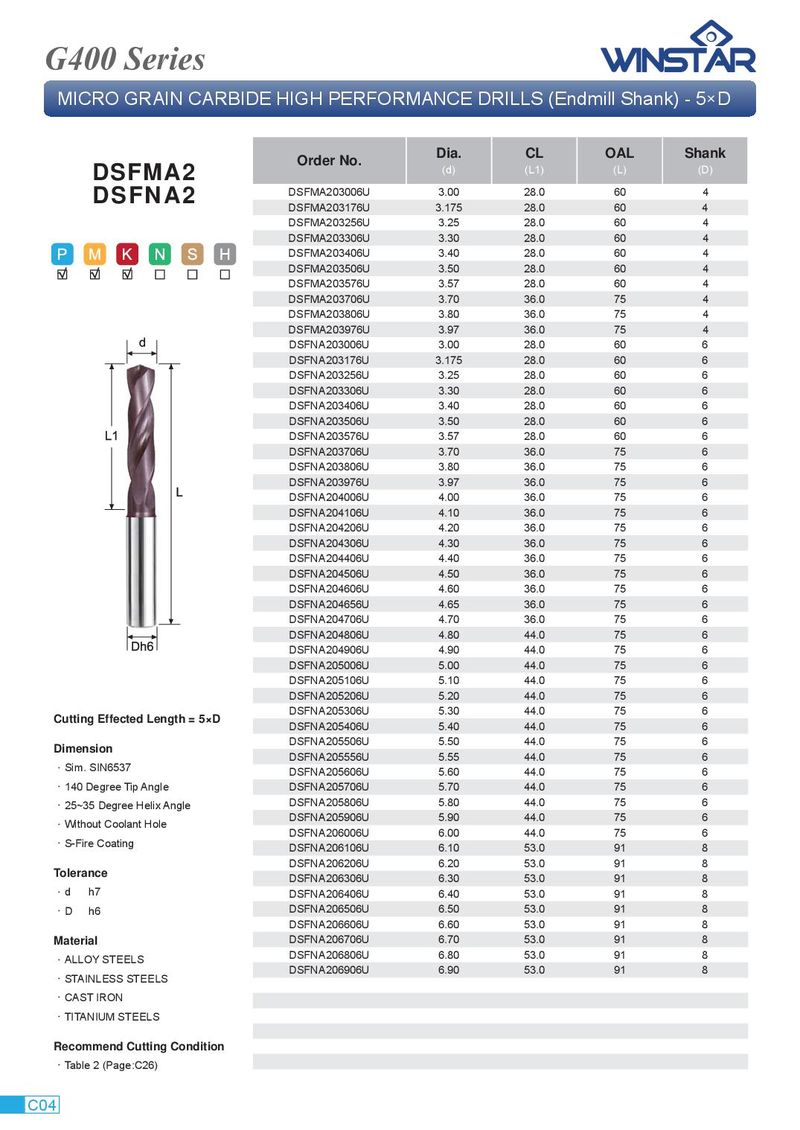

G400 Series MICRO GRAIN CARBIDE HIGH PERFORMANCE DRILLS (Endmill Shank) - 5×D Dia. CL OAL Shank Order No. (d) (L1) (L) (D) DSFMA2 DSFMA203006U 3.00 28.0 60 4 DSFNA2 DSFMA203176U 3.175 28.0 60 4 DSFMA203256U 3.25 28.0 60 4 DSFMA203306U 3.30 28.0 60 4 DSFMA203406U 3.40 28.0 60 4 DSFMA203506U 3.50 28.0 60 4 DSFMA203576U 3.57 28.0 60 4 DSFMA203706U 3.70 36.0 75 4 DSFMA203806U 3.80 36.0 75 4 DSFMA203976U 3.97 36.0 75 4 DSFNA203006U 3.00 28.0 60 6 DSFNA203176U 3.175 28.0 60 6 DSFNA203256U 3.25 28.0 60 6 DSFNA203306U 3.30 28.0 60 6 DSFNA203406U 3.40 28.0 60 6 DSFNA203506U 3.50 28.0 60 6 DSFNA203576U 3.57 28.0 60 6 DSFNA203706U 3.70 36.0 75 6 DSFNA203806U 3.80 36.0 75 6 DSFNA203976U 3.97 36.0 75 6 DSFNA204006U 4.00 36.0 75 6 DSFNA204106U 4.10 36.0 75 6 DSFNA204206U 4.20 36.0 75 6 DSFNA204306U 4.30 36.0 75 6 DSFNA204406U 4.40 36.0 75 6 DSFNA204506U 4.50 36.0 75 6 DSFNA204606U 4.60 36.0 75 6 DSFNA204656U 4.65 36.0 75 6 DSFNA204706U 4.70 36.0 75 6 DSFNA204806U 4.80 44.0 75 6 DSFNA204906U 4.90 44.0 75 6 DSFNA205006U 5.00 44.0 75 6 DSFNA205106U 5.10 44.0 75 6 DSFNA205206U 5.20 44.0 75 6 DSFNA205306U 5.30 44.0 75 6 Cutting Effected Length = 5×D DSFNA205406U 5.40 44.0 75 6 DSFNA205506U 5.50 44.0 75 6 Dimension DSFNA205556U 5.55 44.0 75 6 ． Sim. SIN6537 DSFNA205606U 5.60 44.0 75 6 ． 140 Degree Tip Angle DSFNA205706U 5.70 44.0 75 6 ． 25~35 Degree Helix Angle DSFNA205806U 5.80 44.0 75 6 DSFNA205906U 5.90 44.0 75 6 ． Without Coolant Hole DSFNA206006U 6.00 44.0 75 6 ． S-Fire Coating DSFNA206106U 6.10 53.0 91 8 DSFNA206206U 6.20 53.0 91 8 Tolerance DSFNA206306U 6.30 53.0 91 8 ． d h7 DSFNA206406U 6.40 53.0 91 8 ． D h6 DSFNA206506U 6.50 53.0 91 8 DSFNA206606U 6.60 53.0 91 8 Material DSFNA206706U 6.70 53.0 91 8 DSFNA206806U 6.80 53.0 91 8 ． ALLOY STEELS DSFNA206906U 6.90 53.0 91 8 ． STAINLESS STEELS ． CAST IRON ． TITANIUM STEELS Recommend Cutting Condition ． Table 2 (Page:C26) C04
