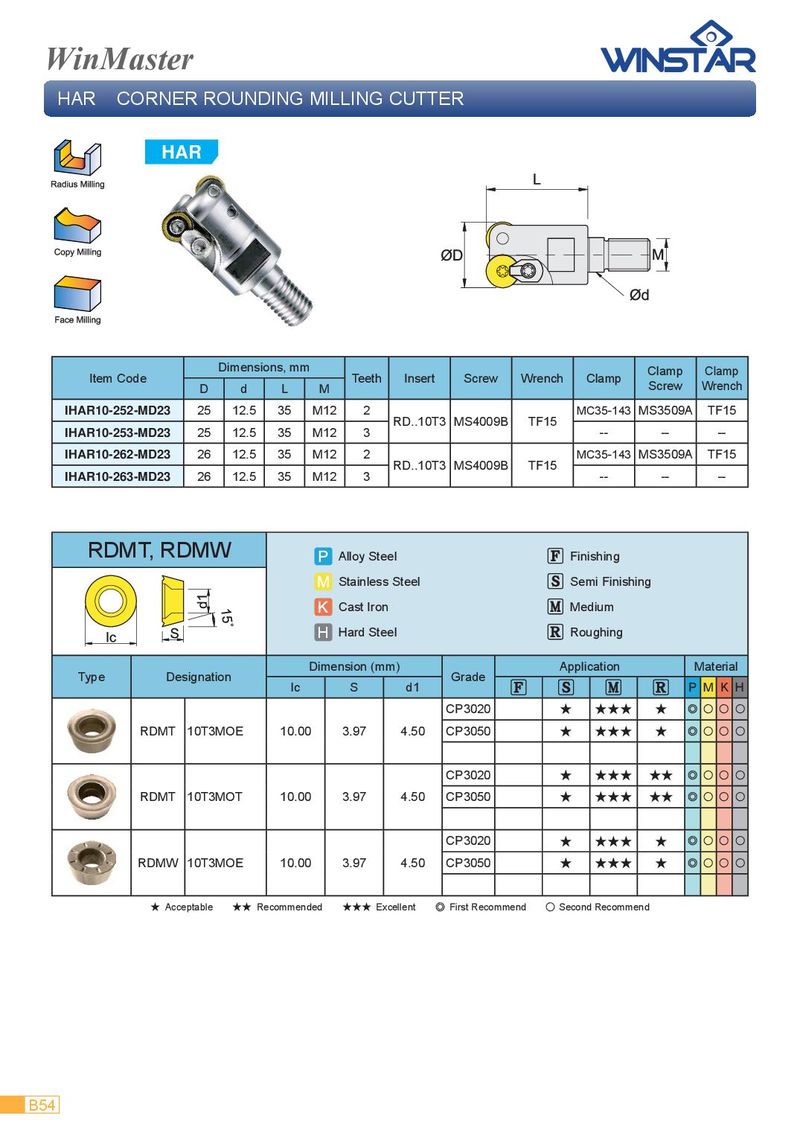

WinMaster HAR CORNER ROUNDING MILLING CUTTER HAR Dimensions, mm Clamp Clamp Item Code Teeth Insert Screw Wrench Clamp D d L M Screw Wrench IHAR10-252-MD23 25 12.5 35 M12 2 MC35-143 MS3509A TF15 RD..10T3 MS4009B TF15 IHAR10-253-MD23 25 12.5 35 M12 3 -- -- -- IHAR10-262-MD23 26 12.5 35 M12 2 MC35-143 MS3509A TF15 RD..10T3 MS4009B TF15 IHAR10-263-MD23 26 12.5 35 M12 3 -- -- -- RDMT, RDMW Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade lc S d1 P M K H CP3020 ★ ★★★ ★ ◎ ○ ○ ○ RDMT 10T3MOE 10.00 3.97 4.50 CP3050 ★ ★★★ ★ ◎ ○ ○ ○ CP3020 ★ ★★★ ★★ ◎ ○ ○ ○ RDMT 10T3MOT 10.00 3.97 4.50 CP3050 ★ ★★★ ★★ ◎ ○ ○ ○ CP3020 ★ ★★★ ★ ◎ ○ ○ ○ RDMW 10T3MOE 10.00 3.97 4.50 CP3050 ★ ★★★ ★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B54
