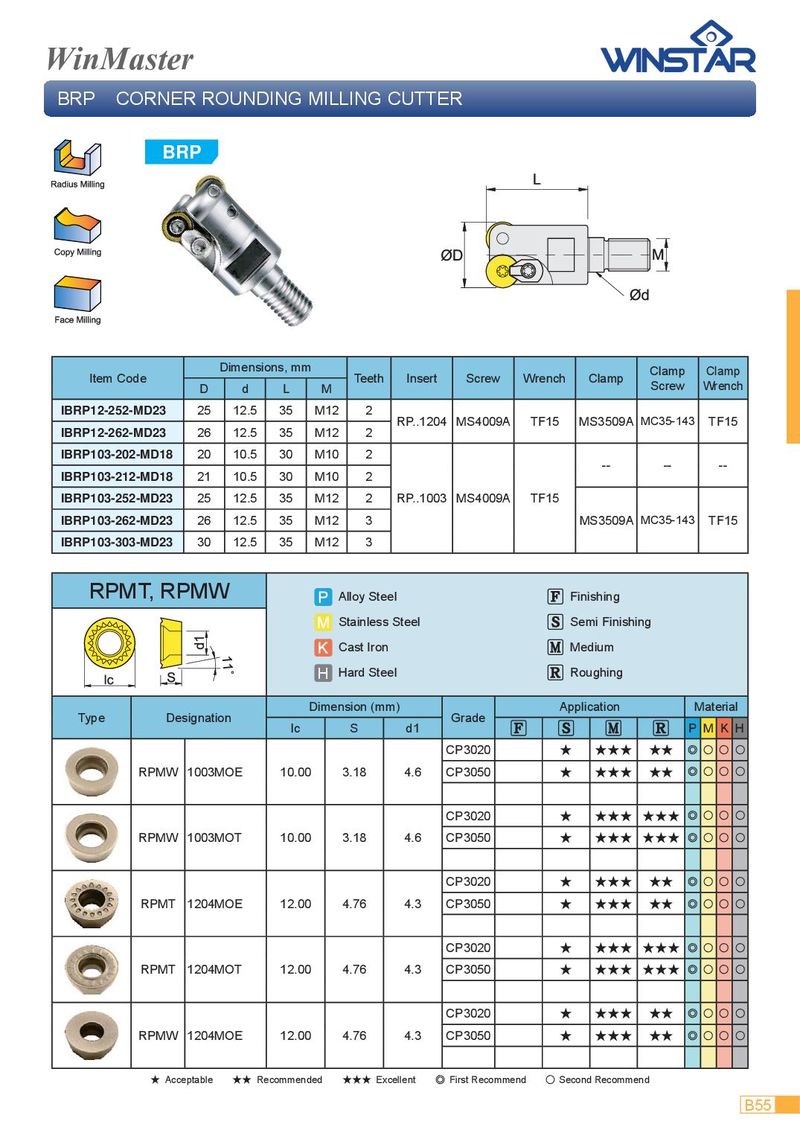

WinMaster BRP CORNER ROUNDING MILLING CUTTER BRP Dimensions, mm Clamp Clamp Item Code Teeth Insert Screw Wrench Clamp D d L M Screw Wrench IBRP12-252-MD23 25 12.5 35 M12 2 RP..1204 MS4009A TF15 MS3509A MC35-143 TF15 IBRP12-262-MD23 26 12.5 35 M12 2 IBRP103-202-MD18 20 10.5 30 M10 2 -- -- -- IBRP103-212-MD18 21 10.5 30 M10 2 IBRP103-252-MD23 25 12.5 35 M12 2 RP..1003 MS4009A TF15 IBRP103-262-MD23 26 12.5 35 M12 3 MS3509A MC35-143 TF15 IBRP103-303-MD23 30 12.5 35 M12 3 RPMT, RPMW Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade lc S d1 P M K H CP3020 ★ ★★★ ★★ ◎ ○ ○ ○ RPMW 1003MOE 10.00 3.18 4.6 CP3050 ★ ★★★ ★★ ◎ ○ ○ ○ CP3020 ★ ★★★ ★★★ ◎ ○ ○ ○ RPMW 1003MOT 10.00 3.18 4.6 CP3050 ★ ★★★ ★★★ ◎ ○ ○ ○ CP3020 ★ ★★★ ★★ ◎ ○ ○ ○ RPMT 1204MOE 12.00 4.76 4.3 CP3050 ★ ★★★ ★★ ◎ ○ ○ ○ CP3020 ★ ★★★ ★★★ ◎ ○ ○ ○ RPMT 1204MOT 12.00 4.76 4.3 CP3050 ★ ★★★ ★★★ ◎ ○ ○ ○ CP3020 ★ ★★★ ★★ ◎ ○ ○ ○ RPMW 1204MOE 12.00 4.76 4.3 CP3050 ★ ★★★ ★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B55
