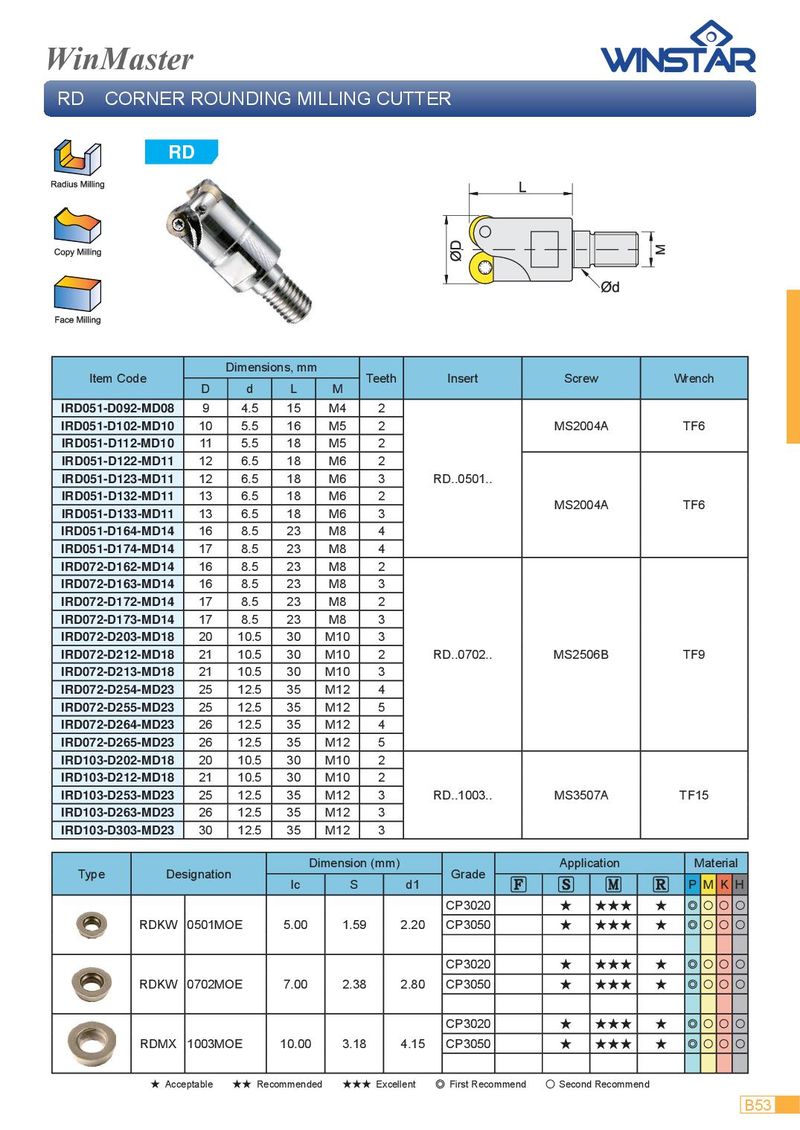

WinMaster RD CORNER ROUNDING MILLING CUTTER RD Dimensions, mm Item Code Teeth Insert Screw Wrench D d L M IRD051-D092-MD08 9 4.5 15 M4 2 IRD051-D102-MD10 10 5.5 16 M5 2 MS2004A TF6 IRD051-D112-MD10 11 5.5 18 M5 2 IRD051-D122-MD11 12 6.5 18 M6 2 IRD051-D123-MD11 12 6.5 18 M6 3 RD..0501.. IRD051-D132-MD11 13 6.5 18 M6 2 MS2004A TF6 IRD051-D133-MD11 13 6.5 18 M6 3 IRD051-D164-MD14 16 8.5 23 M8 4 IRD051-D174-MD14 17 8.5 23 M8 4 IRD072-D162-MD14 16 8.5 23 M8 2 IRD072-D163-MD14 16 8.5 23 M8 3 IRD072-D172-MD14 17 8.5 23 M8 2 IRD072-D173-MD14 17 8.5 23 M8 3 IRD072-D203-MD18 20 10.5 30 M10 3 IRD072-D212-MD18 21 10.5 30 M10 2 RD..0702.. MS2506B TF9 IRD072-D213-MD18 21 10.5 30 M10 3 IRD072-D254-MD23 25 12.5 35 M12 4 IRD072-D255-MD23 25 12.5 35 M12 5 IRD072-D264-MD23 26 12.5 35 M12 4 IRD072-D265-MD23 26 12.5 35 M12 5 IRD103-D202-MD18 20 10.5 30 M10 2 IRD103-D212-MD18 21 10.5 30 M10 2 IRD103-D253-MD23 25 12.5 35 M12 3 RD..1003.. MS3507A TF15 IRD103-D263-MD23 26 12.5 35 M12 3 IRD103-D303-MD23 30 12.5 35 M12 3 Dimension (mm) Application Material Type Designation Grade lc S d1 P M K H CP3020 ★ ★★★ ★ ◎ ○ ○ ○ RDKW 0501MOE 5.00 1.59 2.20 CP3050 ★ ★★★ ★ ◎ ○ ○ ○ CP3020 ★ ★★★ ★ ◎ ○ ○ ○ RDKW 0702MOE 7.00 2.38 2.80 CP3050 ★ ★★★ ★ ◎ ○ ○ ○ CP3020 ★ ★★★ ★ ◎ ○ ○ ○ RDMX 1003MOE 10.00 3.18 4.15 CP3050 ★ ★★★ ★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B53
