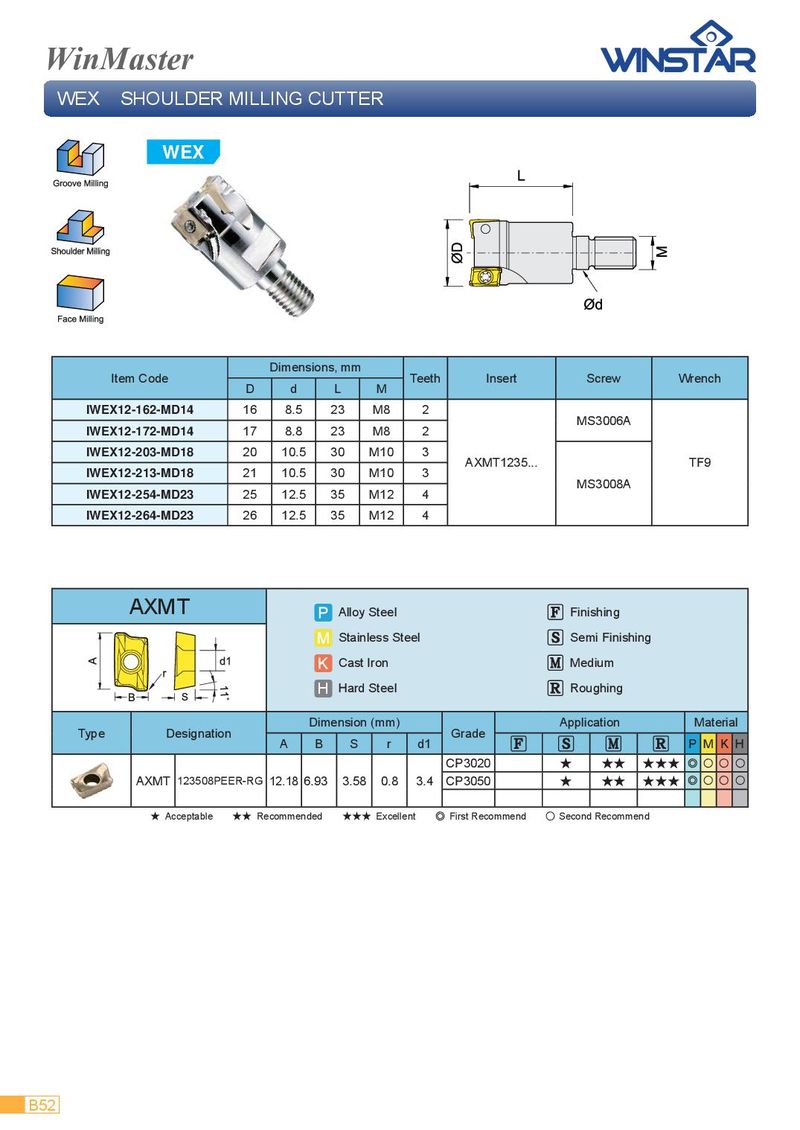

WinMaster WEX SHOULDER MILLING CUTTER WEX Dimensions, mm Item Code Teeth Insert Screw Wrench D d L M IWEX12-162-MD14 16 8.5 23 M8 2 MS3006A IWEX12-172-MD14 17 8.8 23 M8 2 IWEX12-203-MD18 20 10.5 30 M10 3 AXMT1235... TF9 IWEX12-213-MD18 21 10.5 30 M10 3 MS3008A IWEX12-254-MD23 25 12.5 35 M12 4 IWEX12-264-MD23 26 12.5 35 M12 4 AXMT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade A B S r d1 P M K H CP3020 ★ ★★ ★★★ ◎ ○ ○ ○ AXMT 123508PEER-RG 12.18 6.93 3.58 0.8 3.4 CP3050 ★ ★★ ★★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B52
