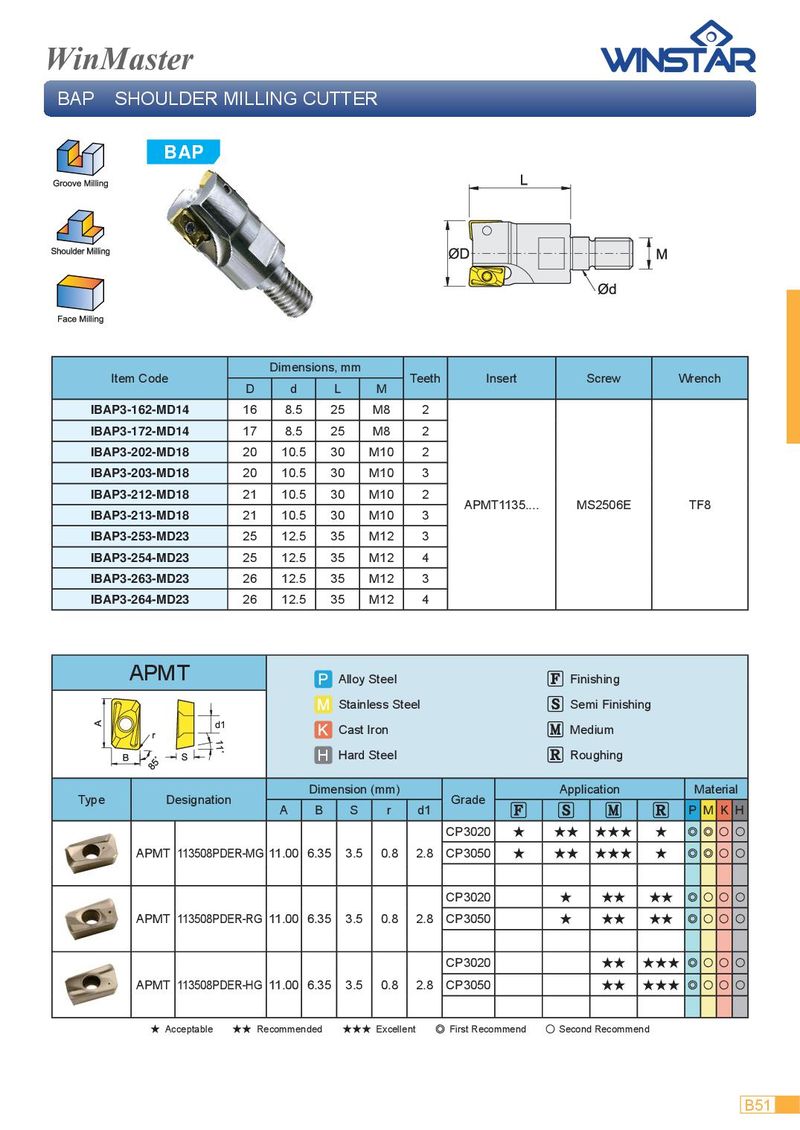

WinMaster BAP SHOULDER MILLING CUTTER BAP Dimensions, mm Item Code Teeth Insert Screw Wrench D d L M IBAP3-162-MD14 16 8.5 25 M8 2 IBAP3-172-MD14 17 8.5 25 M8 2 IBAP3-202-MD18 20 10.5 30 M10 2 IBAP3-203-MD18 20 10.5 30 M10 3 IBAP3-212-MD18 21 10.5 30 M10 2 APMT1135.... MS2506E TF8 IBAP3-213-MD18 21 10.5 30 M10 3 IBAP3-253-MD23 25 12.5 35 M12 3 IBAP3-254-MD23 25 12.5 35 M12 4 IBAP3-263-MD23 26 12.5 35 M12 3 IBAP3-264-MD23 26 12.5 35 M12 4 APMT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade A B S r d1 P M K H CP3020 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ APMT 113508PDER-MG 11.00 6.35 3.5 0.8 2.8 CP3050 ★ ★★ ★★★ ★ ◎ ◎ ○ ○ CP3020 ★ ★★ ★★ ◎ ○ ○ ○ APMT 113508PDER-RG 11.00 6.35 3.5 0.8 2.8 CP3050 ★ ★★ ★★ ◎ ○ ○ ○ CP3020 ★★ ★★★ ◎ ○ ○ ○ APMT 113508PDER-HG 11.00 6.35 3.5 0.8 2.8 CP3050 ★★ ★★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B51
