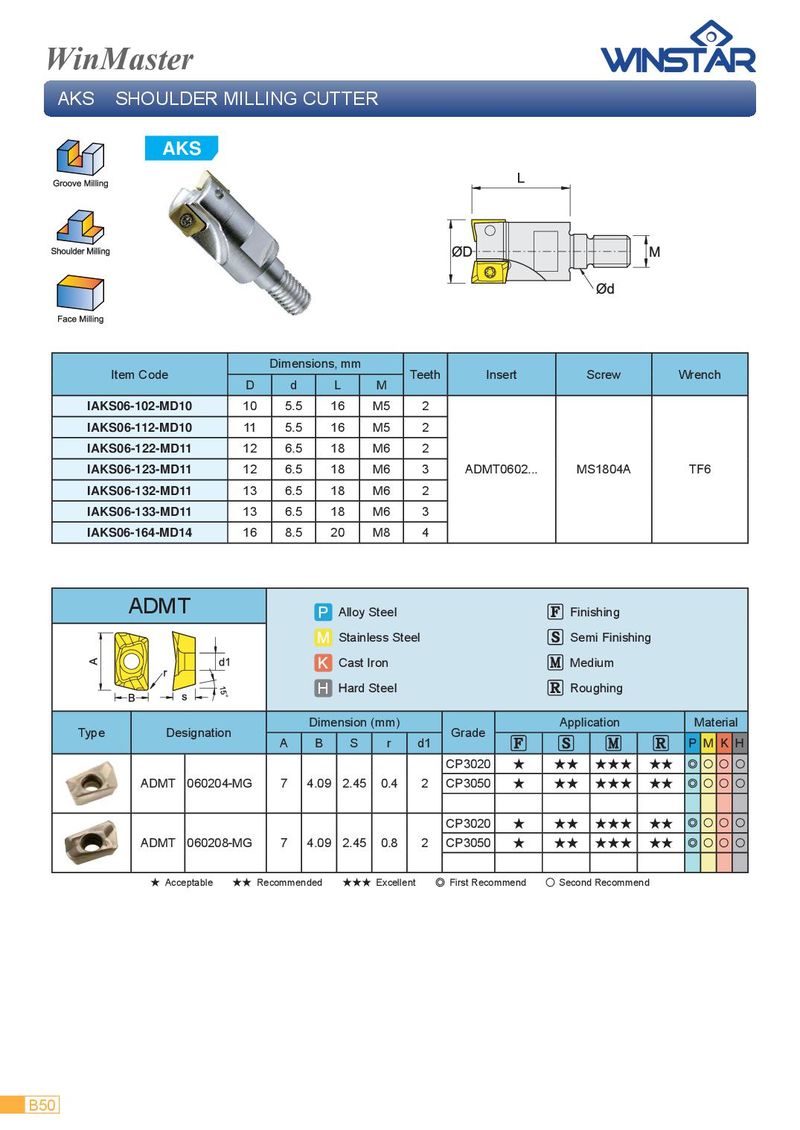

WinMaster AKS SHOULDER MILLING CUTTER AKS Dimensions, mm Item Code Teeth Insert Screw Wrench D d L M IAKS06-102-MD10 10 5.5 16 M5 2 IAKS06-112-MD10 11 5.5 16 M5 2 IAKS06-122-MD11 12 6.5 18 M6 2 IAKS06-123-MD11 12 6.5 18 M6 3 ADMT0602... MS1804A TF6 IAKS06-132-MD11 13 6.5 18 M6 2 IAKS06-133-MD11 13 6.5 18 M6 3 IAKS06-164-MD14 16 8.5 20 M8 4 ADMT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade A B S r d1 P M K H CP3020 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ ADMT 060204-MG 7 4.09 2.45 0.4 2 CP3050 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ CP3020 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ ADMT 060208-MG 7 4.09 2.45 0.8 2 CP3050 ★ ★★ ★★★ ★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B50
