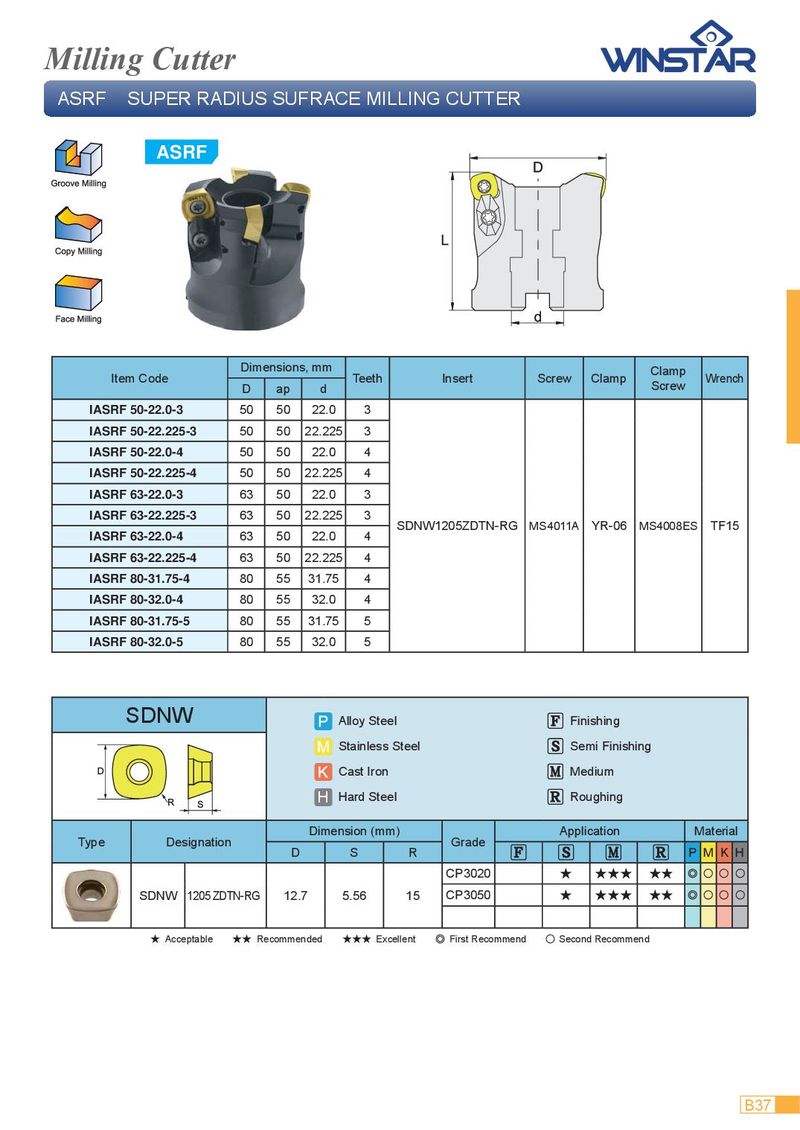

Milling Cutter ASRF SUPER RADIUS SUFRACE MILLING CUTTER ASRF Dimensions, mm Clamp Item Code Teeth Insert Screw Clamp Wrench D ap d Screw IASRF 50-22.0-3 50 50 22.0 3 IASRF 50-22.225-3 50 50 22.225 3 IASRF 50-22.0-4 50 50 22.0 4 IASRF 50-22.225-4 50 50 22.225 4 IASRF 63-22.0-3 63 50 22.0 3 IASRF 63-22.225-3 63 50 22.225 3 SDNW1205ZDTN-RG MS4011A YR-06 MS4008ES TF15 IASRF 63-22.0-4 63 50 22.0 4 IASRF 63-22.225-4 63 50 22.225 4 IASRF 80-31.75-4 80 55 31.75 4 IASRF 80-32.0-4 80 55 32.0 4 IASRF 80-31.75-5 80 55 31.75 5 IASRF 80-32.0-5 80 55 32.0 5 SDNW Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade D S R P M K H CP3020 ★ ★★★ ★★ ◎ ○ ○ ○ SDNW 1205 ZDTN-RG 12.7 5.56 15 CP3050 ★ ★★★ ★★ ◎ ○ ○ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B37
