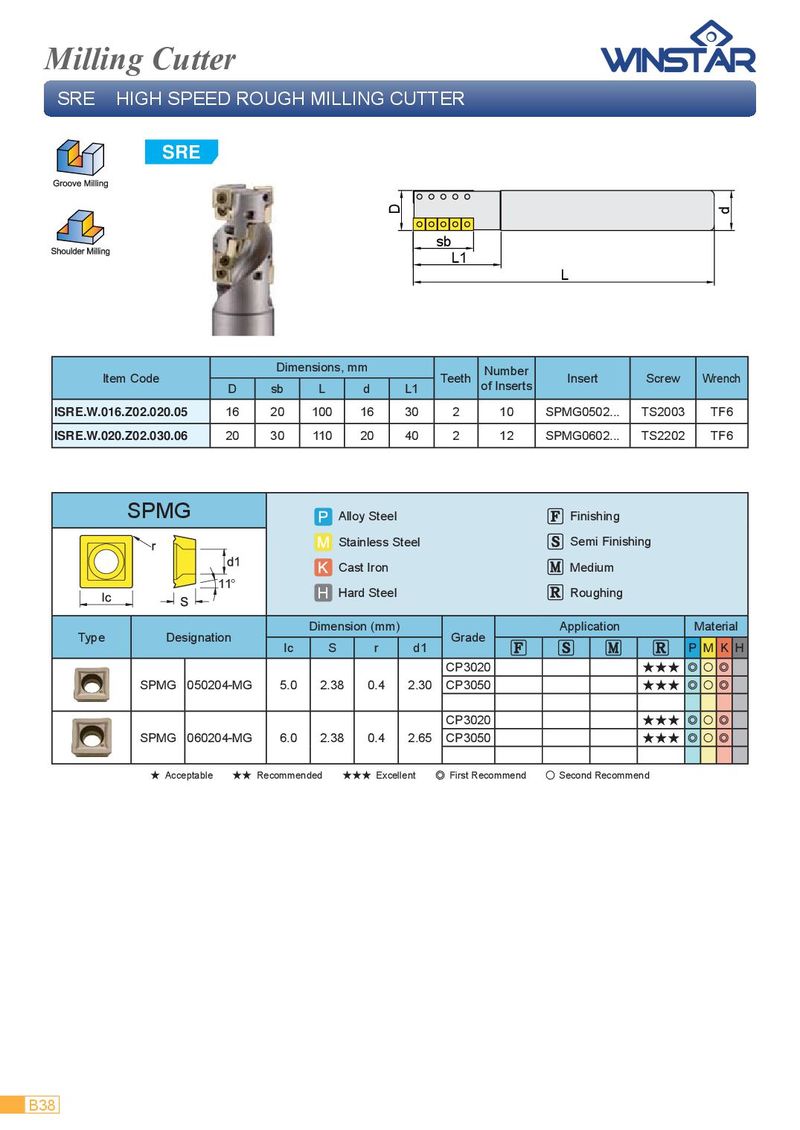

Milling Cutter SRE HIGH SPEED ROUGH MILLING CUTTER SRE D d sb L1 L Dimensions, mm Number Item Code Teeth Insert Screw Wrench D sb L d L1 of Inserts ISRE.W.016.Z02.020.05 16 20 100 16 30 2 10 SPMG0502... TS2003 TF6 ISRE.W.020.Z02.030.06 20 30 110 20 40 2 12 SPMG0602... TS2202 TF6 SPMG Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium 11° H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade Ic S r d1 P M K H CP3020 ★★★ ◎ ○ ◎ SPMG 050204-MG 5.0 2.38 0.4 2.30 CP3050 ★★★ ◎ ○ ◎ CP3020 ★★★ ◎ ○ ◎ SPMG 060204-MG 6.0 2.38 0.4 2.65 CP3050 ★★★ ◎ ○ ◎ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B38
