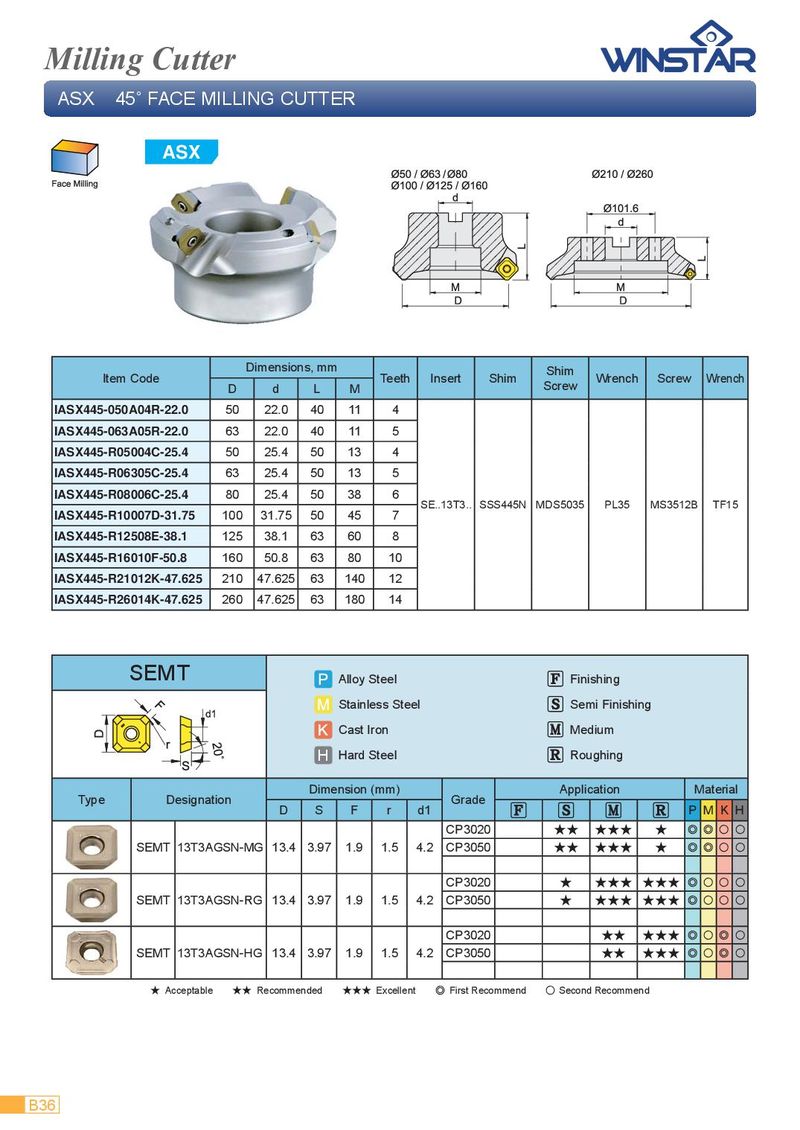

Milling Cutter ASX 45˚ FACE MILLING CUTTER ASX Dimensions, mm Shim Item Code Teeth Insert Shim Wrench Screw Wrench D d L M Screw IASX445-050A04R-22.0 50 22.0 40 11 4 IASX445-063A05R-22.0 63 22.0 40 11 5 IASX445-R05004C-25.4 50 25.4 50 13 4 IASX445-R06305C-25.4 63 25.4 50 13 5 IASX445-R08006C-25.4 80 25.4 50 38 6 SE..13T3.. SSS445N MDS5035 PL35 MS3512B TF15 IASX445-R10007D-31.75 100 31.75 50 45 7 IASX445-R12508E-38.1 125 38.1 63 60 8 IASX445-R16010F-50.8 160 50.8 63 80 10 IASX445-R21012K-47.625 210 47.625 63 140 12 IASX445-R26014K-47.625 260 47.625 63 180 14 SEMT Alloy Steel Finishing Stainless Steel Semi Finishing Cast Iron Medium H Hard Steel Roughing Dimension (mm) Application Material Type Designation Grade D S F r d1 P M K H CP3020 ★★ ★★★ ★ ◎ ◎ ○ ○ SEMT 13T3AGSN-MG 13.4 3.97 1.9 1.5 4.2 CP3050 ★★ ★★★ ★ ◎ ◎ ○ ○ CP3020 ★ ★★★ ★★★ ◎ ○ ○ ○ SEMT 13T3AGSN-RG 13.4 3.97 1.9 1.5 4.2 CP3050 ★ ★★★ ★★★ ◎ ○ ○ ○ CP3020 ★★ ★★★ ◎ ○ ◎ ○ SEMT 13T3AGSN-HG 13.4 3.97 1.9 1.5 4.2 CP3050 ★★ ★★★ ◎ ○ ◎ ○ ★ Acceptable 　　★★ Recommended 　　★★★ Excellent 　　 ◎ First Recommend 　　 ○ Second Recommend B36
