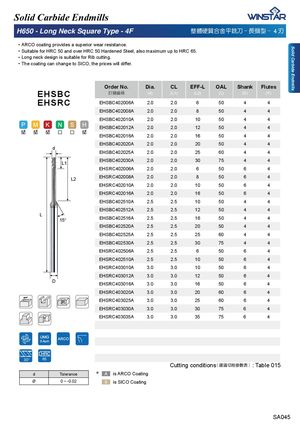

ᅚARCO coating provides a superior wear resistance. ᅚSuitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ᅚLong neck design is suitable for Rib cutting. ᅚ7KHFRDWLQJFDQFKDQJHWR6,&2WKHSULFHVZLOOGLႇHU
| Order No. ���� | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EHSBC402006A | 2.0 | 2.0 | 6 | 50 | 4 | 4 |
| EHSBC402008A | 2.0 | 2.0 | 8 | 50 | 4 | 4 |
| EHSBC402010A | 2.0 | 2.0 | 10 | 50 | 4 | 4 |
| EHSBC402012A | 2.0 | 2.0 | 12 | 50 | 4 | 4 |
| EHSBC402016A | 2.0 | 2.0 | 16 | 50 | 4 | 4 |
| EHSBC402020A | 2.0 | 2.0 | 20 | 50 | 4 | 4 |
| EHSBC402025A | 2.0 | 2.0 | 25 | 60 | 4 | 4 |
| EHSBC402030A | 2.0 | 2.0 | 30 | 75 | 4 | 4 |
| EHSRC402006A | 2.0 | 2.0 | 6 | 50 | 6 | 4 |
| EHSRC402008A | 2.0 | 2.0 | 8 | 50 | 6 | 4 |
| EHSRC402010A | 2.0 | 2.0 | 10 | 50 | 6 | 4 |
| EHSRC402016A | 2.0 | 2.0 | 16 | 50 | 6 | 4 |
| EHSBC402510A | 2.5 | 2.5 | 10 | 50 | 4 | 4 |
| EHSBC402512A | 2.5 | 2.5 | 12 | 50 | 4 | 4 |
| EHSBC402516A | 2.5 | 2.5 | 16 | 50 | 4 | 4 |
| EHSBC402520A | 2.5 | 2.5 | 20 | 50 | 4 | 4 |
| EHSBC402525A | 2.5 | 2.5 | 25 | 60 | 4 | 4 |
| EHSBC402530A | 2.5 | 2.5 | 30 | 75 | 4 | 4 |
| EHSRC402506A | 2.5 | 2.5 | 6 | 50 | 6 | 4 |
| EHSRC402510A | 2.5 | 2.5 | 10 | 50 | 6 | 4 |
| EHSRC403010A | 3.0 | 3.0 | 10 | 50 | 6 | 4 |
| EHSRC403012A | 3.0 | 3.0 | 12 | 50 | 6 | 4 |
| EHSRC403016A | 3.0 | 3.0 | 16 | 50 | 6 | 4 |
| EHSRC403020A | 3.0 | 3.0 | 20 | 60 | 6 | 4 |
| EHSRC403025A | 3.0 | 3.0 | 25 | 60 | 6 | 4 |
| EHSRC403030A | 3.0 | 3.0 | 30 | 75 | 6 | 4 |
| EHSRC403035A | 3.0 | 3.0 | 35 | 75 | 6 | 4 |
EHSBC
EHSRC
d
L1
L2
L
D
30° 65
Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 015
| d | Tolerance | ✽ | is ARCO Coating |
| Ø | 0 ~ -0.02 | is SICO Coating |
