Каталог Winstar монолитный инструмент 2020 - страница 56
Навигация
Общий каталог Winstar 2015 - 2016
Брошюра Winstar пластины 2021
Каталог Winstar сверление
Каталог Winstar инструмент со сменными пластинами 2020
Каталог Winstar твердосплавные пластины и вставки
Брошюра Winstar основная номенклатура 2021

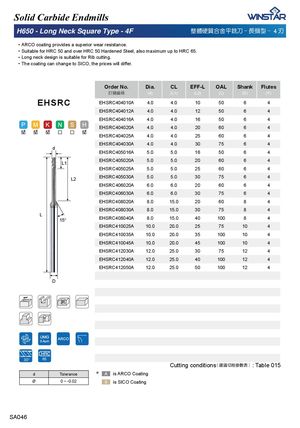

ᅚARCO coating provides a superior wear resistance. ᅚSuitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ᅚLong neck design is suitable for Rib cutting. ᅚ7KHFRDWLQJFDQFKDQJHWR6,&2WKHSULFHVZLOOGLႇHU
| Order No. ���� | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) | |
| EHSRC | EHSRC404010A | 4.0 | 4.0 | 10 | 50 | 6 | 4 |
| EHSRC404012A | 4.0 | 4.0 | 12 | 50 | 6 | 4 | |
| EHSRC404016A | 4.0 | 4.0 | 16 | 50 | 6 | 4 | |
| EHSRC404020A | 4.0 | 4.0 | 20 | 60 | 6 | 4 | |
| EHSRC404025A | 4.0 | 4.0 | 25 | 60 | 6 | 4 | |
| d | EHSRC404030A | 4.0 | 4.0 | 30 | 75 | 6 | 4 |
| EHSRC405016A | 5.0 | 5.0 | 16 | 50 | 6 | 4 | |
| L1 | EHSRC405020A | 5.0 | 5.0 | 20 | 60 | 6 | 4 |
| EHSRC405025A | 5.0 | 5.0 | 25 | 60 | 6 | 4 | |
| L2 | EHSRC405030A | 5.0 | 5.0 | 30 | 75 | 6 | 4 |
| EHSRC406020A | 6.0 | 6.0 | 20 | 60 | 6 | 4 | |
| EHSRC406030A | 6.0 | 6.0 | 30 | 75 | 6 | 4 | |
| EHSRC408020A | 8.0 | 15.0 | 20 | 60 | 8 | 4 | |
| EHSRC408030A | 8.0 | 15.0 | 30 | 75 | 8 | 4 | |
| L 15° | EHSRC408040A | 8.0 | 15.0 | 40 | 100 | 8 | 4 |
| EHSRC410025A | 10.0 | 20.0 | 25 | 75 | 10 | 4 | |
| EHSRC410035A | 10.0 | 20.0 | 35 | 100 | 10 | 4 | |
| EHSRC410045A | 10.0 | 20.0 | 45 | 100 | 10 | 4 | |
| EHSRC412030A | 12.0 | 25.0 | 30 | 75 | 12 | 4 | |
| EHSRC412040A | 12.0 | 25.0 | 40 | 100 | 12 | 4 | |
| EHSRC412050A | 12.0 | 25.0 | 50 | 100 | 12 | 4 | |
| D |
30° 65
Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 015
| d | Tolerance | ✽ | is ARCO Coating |
| Ø | 0 ~ -0.02 | is SICO Coating |
