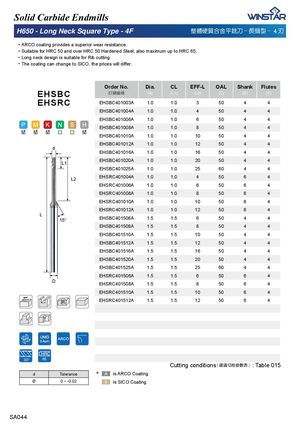

ᅚARCO coating provides a superior wear resistance. ᅚSuitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ᅚLong neck design is suitable for Rib cutting. ᅚ7KHFRDWLQJFDQFKDQJHWR6,&2WKHSULFHVZLOOGLႇHU
| EHSBC | Order No. ���� | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EHSRC | EHSBC401003A | 1.0 | 1.0 | 3 | 50 | 4 | 4 |
| EHSBC401004A | 1.0 | 1.0 | 4 | 50 | 4 | 4 | |
| EHSBC401006A | 1.0 | 1.0 | 6 | 50 | 4 | 4 | |
| EHSBC401008A | 1.0 | 1.0 | 8 | 50 | 4 | 4 | |
| EHSBC401010A | 1.0 | 1.0 | 10 | 50 | 4 | 4 | |
| EHSBC401012A | 1.0 | 1.0 | 12 | 50 | 4 | 4 | |
| d | EHSBC401016A | 1.0 | 1.0 | 16 | 50 | 4 | 4 |
| L1 | EHSBC401020A | 1.0 | 1.0 | 20 | 50 | 4 | 4 |
| EHSBC401025A | 1.0 | 1.0 | 25 | 60 | 4 | 4 | |
| L2 | EHSRC401004A | 1.0 | 1.0 | 4 | 50 | 6 | 4 |
| EHSRC401006A | 1.0 | 1.0 | 6 | 50 | 6 | 4 | |
| EHSRC401008A | 1.0 | 1.0 | 8 | 50 | 6 | 4 | |
| EHSRC401010A | 1.0 | 1.0 | 10 | 50 | 6 | 4 | |
| EHSRC401012A | 1.0 | 1.0 | 12 | 50 | 6 | 4 | |
| L 15° | EHSBC401506A | 1.5 | 1.5 | 6 | 50 | 4 | 4 |
| EHSBC401508A | 1.5 | 1.5 | 8 | 50 | 4 | 4 | |
| EHSBC401510A | 1.5 | 1.5 | 10 | 50 | 4 | 4 | |
| EHSBC401512A | 1.5 | 1.5 | 12 | 50 | 4 | 4 | |
| EHSBC401516A | 1.5 | 1.5 | 16 | 50 | 4 | 4 | |
| EHSBC401520A | 1.5 | 1.5 | 20 | 50 | 4 | 4 | |
| EHSBC401525A | 1.5 | 1.5 | 25 | 60 | 4 | 4 | |
| EHSRC401506A | 1.5 | 1.5 | 6 | 50 | 6 | 4 | |
| D | EHSRC401508A | 1.5 | 1.5 | 8 | 50 | 6 | 4 |
| EHSRC401510A | 1.5 | 1.5 | 10 | 50 | 6 | 4 | |
| EHSRC401512A | 1.5 | 1.5 | 12 | 50 | 6 | 4 |
30° 65
Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 015
| d | Tolerance | ✽ | is ARCO Coating |
| Ø | 0 ~ -0.02 | is SICO Coating |
