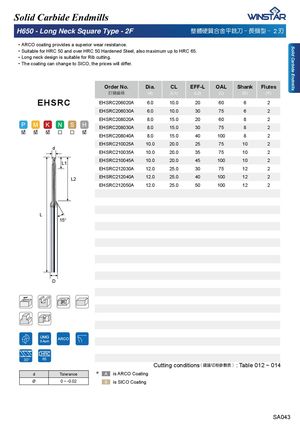

ᅚARCO coating provides a superior wear resistance. ᅚSuitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ᅚLong neck design is suitable for Rib cutting. ᅚ7KHFRDWLQJFDQFKDQJHWR6,&2WKHSULFHVZLOOGLႇHU
| Order No. ���� | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EHSRC206020A | 6.0 | 10.0 | 20 | 60 | 6 | 2 |
| EHSRC206030A | 6.0 | 10.0 | 30 | 75 | 6 | 2 |
| EHSRC208020A | 8.0 | 15.0 | 20 | 60 | 8 | 2 |
| EHSRC208030A | 8.0 | 15.0 | 30 | 75 | 8 | 2 |
| EHSRC208040A | 8.0 | 15.0 | 40 | 100 | 8 | 2 |
| EHSRC210025A | 10.0 | 20.0 | 25 | 75 | 10 | 2 |
| EHSRC210035A | 10.0 | 20.0 | 35 | 75 | 10 | 2 |
| EHSRC210045A | 10.0 | 20.0 | 45 | 100 | 10 | 2 |
| EHSRC212030A | 12.0 | 25.0 | 30 | 75 | 12 | 2 |
| EHSRC212040A | 12.0 | 25.0 | 40 | 100 | 12 | 2 |
| EHSRC212050A | 12.0 | 25.0 | 50 | 100 | 12 | 2 |
EHSRC
d
L1
L2
L 15°
D
30° 65
Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 012 ~ 014
| d | Tolerance ✽ | is ARCO Coating |
| Ø | 0 ~ -0.02 | is SICO Coating |
