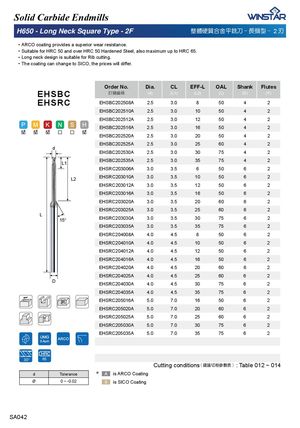

ᅚARCO coating provides a superior wear resistance. ᅚSuitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ᅚLong neck design is suitable for Rib cutting. ᅚ7KHFRDWLQJFDQFKDQJHWR6,&2WKHSULFHVZLOOGLႇHU
| Order No. ���� | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EHSBC202508A | 2.5 | 3.0 | 8 | 50 | 4 | 2 |
| EHSBC202510A | 2.5 | 3.0 | 10 | 50 | 4 | 2 |
| EHSBC202512A | 2.5 | 3.0 | 12 | 50 | 4 | 2 |
| EHSBC202516A | 2.5 | 3.0 | 16 | 50 | 4 | 2 |
| EHSBC202520A | 2.5 | 3.0 | 20 | 50 | 4 | 2 |
| EHSBC202525A | 2.5 | 3.0 | 25 | 60 | 4 | 2 |
| EHSBC202530A | 2.5 | 3.0 | 30 | 75 | 4 | 2 |
| EHSBC202535A | 2.5 | 3.0 | 35 | 75 | 4 | 2 |
| EHSRC203006A | 3.0 | 3.5 | 6 | 50 | 6 | 2 |
| EHSRC203010A | 3.0 | 3.5 | 10 | 50 | 6 | 2 |
| EHSRC203012A | 3.0 | 3.5 | 12 | 50 | 6 | 2 |
| EHSRC203016A | 3.0 | 3.5 | 16 | 50 | 6 | 2 |
| EHSRC203020A | 3.0 | 3.5 | 20 | 60 | 6 | 2 |
| EHSRC203025A | 3.0 | 3.5 | 25 | 60 | 6 | 2 |
| EHSRC203030A | 3.0 | 3.5 | 30 | 75 | 6 | 2 |
| EHSRC203035A | 3.0 | 3.5 | 35 | 75 | 6 | 2 |
| EHSRC204008A | 4.0 | 4.5 | 8 | 50 | 6 | 2 |
| EHSRC204010A | 4.0 | 4.5 | 10 | 50 | 6 | 2 |
| EHSRC204012A | 4.0 | 4.5 | 12 | 50 | 6 | 2 |
| EHSRC204016A | 4.0 | 4.5 | 16 | 50 | 6 | 2 |
| EHSRC204020A | 4.0 | 4.5 | 20 | 60 | 6 | 2 |
| EHSRC204025A | 4.0 | 4.5 | 25 | 60 | 6 | 2 |
| EHSRC204030A | 4.0 | 4.5 | 30 | 75 | 6 | 2 |
| EHSRC204035A | 4.0 | 4.5 | 35 | 75 | 6 | 2 |
| EHSRC205016A | 5.0 | 7.0 | 16 | 50 | 6 | 2 |
| EHSRC205020A | 5.0 | 7.0 | 20 | 60 | 6 | 2 |
| EHSRC205025A | 5.0 | 7.0 | 25 | 60 | 6 | 2 |
| EHSRC205030A | 5.0 | 7.0 | 30 | 75 | 6 | 2 |
| EHSRC205035A | 5.0 | 7.0 | 35 | 75 | 6 | 2 |
EHSBC
EHSRC
d
L1
L2
L
D
30° 65
Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 012 ~ 014
| d | Tolerance | ✽ | is ARCO Coating |
| Ø | 0 ~ -0.02 | is SICO Coating |
