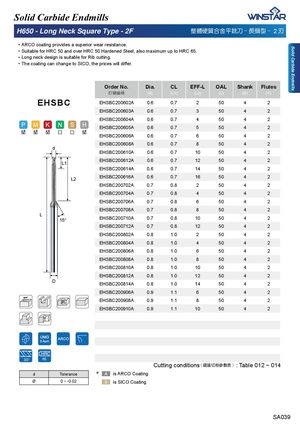

ᅚARCO coating provides a superior wear resistance. ᅚSuitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ᅚLong neck design is suitable for Rib cutting. ᅚ7KHFRDWLQJFDQFKDQJHWR6,&2WKHSULFHVZLOOGLႇHU
| Order No. ���� | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EHSBC200602A | 0.6 | 0.7 | 2 | 50 | 4 | 2 |
| EHSBC200603A | 0.6 | 0.7 | 3 | 50 | 4 | 2 |
| EHSBC200604A | 0.6 | 0.7 | 4 | 50 | 4 | 2 |
| EHSBC200605A | 0.6 | 0.7 | 5 | 50 | 4 | 2 |
| EHSBC200606A | 0.6 | 0.7 | 6 | 50 | 4 | 2 |
| EHSBC200608A | 0.6 | 0.7 | 8 | 50 | 4 | 2 |
| EHSBC200610A | 0.6 | 0.7 | 10 | 50 | 4 | 2 |
| EHSBC200612A | 0.6 | 0.7 | 12 | 50 | 4 | 2 |
| EHSBC200614A | 0.6 | 0.7 | 14 | 50 | 4 | 2 |
| EHSBC200616A | 0.6 | 0.7 | 16 | 50 | 4 | 2 |
| EHSBC200702A | 0.7 | 0.8 | 2 | 50 | 4 | 2 |
| EHSBC200704A | 0.7 | 0.8 | 4 | 50 | 4 | 2 |
| EHSBC200706A | 0.7 | 0.8 | 6 | 50 | 4 | 2 |
| EHSBC200708A | 0.7 | 0.8 | 8 | 50 | 4 | 2 |
| EHSBC200710A | 0.7 | 0.8 | 10 | 50 | 4 | 2 |
| EHSBC200712A | 0.7 | 0.8 | 12 | 50 | 4 | 2 |
| EHSBC200802A | 0.8 | 1.0 | 2 | 50 | 4 | 2 |
| EHSBC200804A | 0.8 | 1.0 | 4 | 50 | 4 | 2 |
| EHSBC200806A | 0.8 | 1.0 | 6 | 50 | 4 | 2 |
| EHSBC200808A | 0.8 | 1.0 | 8 | 50 | 4 | 2 |
| EHSBC200810A | 0.8 | 1.0 | 10 | 50 | 4 | 2 |
| EHSBC200812A | 0.8 | 1.0 | 12 | 50 | 4 | 2 |
| EHSBC200814A | 0.8 | 1.0 | 14 | 50 | 4 | 2 |
| EHSBC200906A | 0.9 | 1.1 | 6 | 50 | 4 | 2 |
| EHSBC200908A | 0.9 | 1.1 | 8 | 50 | 4 | 2 |
| EHSBC200910A | 0.9 | 1.1 | 10 | 50 | 4 | 2 |
EHSBC
d
L1
L2
L
D
30° 65
Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 012 ~ 014
| d | Tolerance | ✽ | is ARCO Coating |
| Ø | 0 ~ -0.02 | is SICO Coating |
