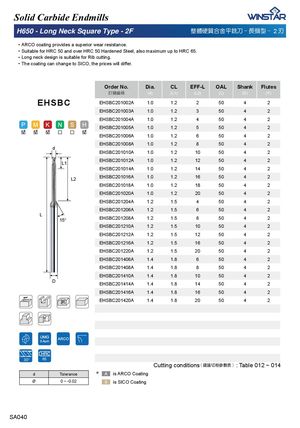

ᅚARCO coating provides a superior wear resistance. ᅚSuitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ᅚLong neck design is suitable for Rib cutting. ᅚ7KHFRDWLQJFDQFKDQJHWR6,&2WKHSULFHVZLOOGLႇHU
| Order No. ���� | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EHSBC201002A | 1.0 | 1.2 | 2 | 50 | 4 | 2 |
| EHSBC201003A | 1.0 | 1.2 | 3 | 50 | 4 | 2 |
| EHSBC201004A | 1.0 | 1.2 | 4 | 50 | 4 | 2 |
| EHSBC201005A | 1.0 | 1.2 | 5 | 50 | 4 | 2 |
| EHSBC201006A | 1.0 | 1.2 | 6 | 50 | 4 | 2 |
| EHSBC201008A | 1.0 | 1.2 | 8 | 50 | 4 | 2 |
| EHSBC201010A | 1.0 | 1.2 | 10 | 50 | 4 | 2 |
| EHSBC201012A | 1.0 | 1.2 | 12 | 50 | 4 | 2 |
| EHSBC201014A | 1.0 | 1.2 | 14 | 50 | 4 | 2 |
| EHSBC201016A | 1.0 | 1.2 | 16 | 50 | 4 | 2 |
| EHSBC201018A | 1.0 | 1.2 | 18 | 50 | 4 | 2 |
| EHSBC201020A | 1.0 | 1.2 | 20 | 50 | 4 | 2 |
| EHSBC201204A | 1.2 | 1.5 | 4 | 50 | 4 | 2 |
| EHSBC201206A | 1.2 | 1.5 | 6 | 50 | 4 | 2 |
| EHSBC201208A | 1.2 | 1.5 | 8 | 50 | 4 | 2 |
| EHSBC201210A | 1.2 | 1.5 | 10 | 50 | 4 | 2 |
| EHSBC201212A | 1.2 | 1.5 | 12 | 50 | 4 | 2 |
| EHSBC201216A | 1.2 | 1.5 | 16 | 50 | 4 | 2 |
| EHSBC201220A | 1.2 | 1.5 | 20 | 50 | 4 | 2 |
| EHSBC201406A | 1.4 | 1.8 | 6 | 50 | 4 | 2 |
| EHSBC201408A | 1.4 | 1.8 | 8 | 50 | 4 | 2 |
| EHSBC201410A | 1.4 | 1.8 | 10 | 50 | 4 | 2 |
| EHSBC201414A | 1.4 | 1.8 | 14 | 50 | 4 | 2 |
| EHSBC201416A | 1.4 | 1.8 | 16 | 50 | 4 | 2 |
| EHSBC201420A | 1.4 | 1.8 | 20 | 50 | 4 | 2 |
EHSBC
d
L1
L2
L
D
30° 65
Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 012 ~ 014
| d | Tolerance | ✽ | is ARCO Coating |
| Ø | 0 ~ -0.02 | is SICO Coating |
