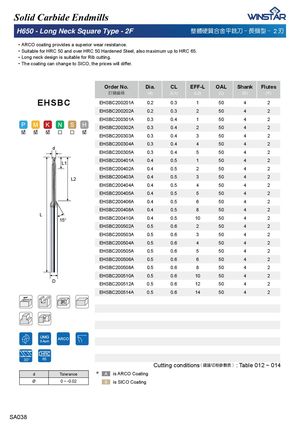

ᅚARCO coating provides a superior wear resistance. ᅚSuitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ᅚLong neck design is suitable for Rib cutting. ᅚ7KHFRDWLQJFDQFKDQJHWR6,&2WKHSULFHVZLOOGLႇHU
| Order No. ���� | Dia. (d) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) | |
| EHSBC | EHSBC200201A | 0.2 | 0.3 | 1 | 50 | 4 | 2 |
| EHSBC200202A | 0.2 | 0.3 | 2 | 50 | 4 | 2 | |
| EHSBC200301A | 0.3 | 0.4 | 1 | 50 | 4 | 2 | |
| EHSBC200302A | 0.3 | 0.4 | 2 | 50 | 4 | 2 | |
| EHSBC200303A | 0.3 | 0.4 | 3 | 50 | 4 | 2 | |
| EHSBC200304A | 0.3 | 0.4 | 4 | 50 | 4 | 2 | |
| d | EHSBC200305A | 0.3 | 0.4 | 5 | 50 | 4 | 2 |
| L1 | EHSBC200401A | 0.4 | 0.5 | 1 | 50 | 4 | 2 |
| EHSBC200402A | 0.4 | 0.5 | 2 | 50 | 4 | 2 | |
| L2 | EHSBC200403A | 0.4 | 0.5 | 3 | 50 | 4 | 2 |
| EHSBC200404A | 0.4 | 0.5 | 4 | 50 | 4 | 2 | |
| EHSBC200405A | 0.4 | 0.5 | 5 | 50 | 4 | 2 | |
| EHSBC200406A | 0.4 | 0.5 | 6 | 50 | 4 | 2 | |
| EHSBC200408A | 0.4 | 0.5 | 8 | 50 | 4 | 2 | |
| L 15° | EHSBC200410A | 0.4 | 0.5 | 10 | 50 | 4 | 2 |
| EHSBC200502A | 0.5 | 0.6 | 2 | 50 | 4 | 2 | |
| EHSBC200503A | 0.5 | 0.6 | 3 | 50 | 4 | 2 | |
| EHSBC200504A | 0.5 | 0.6 | 4 | 50 | 4 | 2 | |
| EHSBC200505A | 0.5 | 0.6 | 5 | 50 | 4 | 2 | |
| EHSBC200506A | 0.5 | 0.6 | 6 | 50 | 4 | 2 | |
| EHSBC200508A | 0.5 | 0.6 | 8 | 50 | 4 | 2 | |
| EHSBC200510A | 0.5 | 0.6 | 10 | 50 | 4 | 2 | |
| D | EHSBC200512A | 0.5 | 0.6 | 12 | 50 | 4 | 2 |
| EHSBC200514A | 0.5 | 0.6 | 14 | 50 | 4 | 2 |
30° 65
Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 012 ~ 014
| d | Tolerance | ✽ | is ARCO Coating |
| Ø | 0 ~ -0.02 | is SICO Coating |
