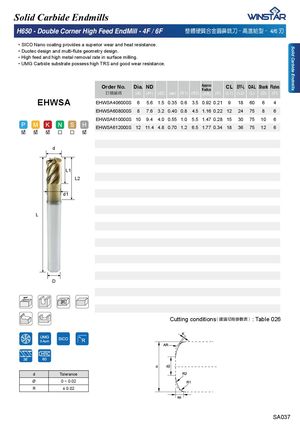

H650 - Double Corner High Feed EndMill - 4F / 6F 㜃汣䧻幹▗捠⢢烊搠⎏ . 汧懁仵⤚ .!4/6 ⎒
ᅚSICO Nano coating provides a superior wear and heat resistance. ᅚ'XRWHFGHVLJQDQGPXOWLÀXWHJHRPHWU\GHVLJQ ᅚHigh feed and high metal removal rate in surface milling. ᅚUMG Carbide substrate possess high TRS and good wear resistance.
| Order No. ���� | Dia. (d) | ND (d1) | (d2) | (ap) | (R1) | (R2) | Approx Radius (AR) | (K) | CL (L1) | EFF-L (L2) | OAL (L) | Shank (D) | Flutes (F) |
| EHWSA406000S | 6 | 5.6 | 1.5 | 0.35 | 0.6 | 3.5 | 0.92 | 0.21 | 9 | 18 | 60 | 6 | 4 |
| EHWSA608000S | 8 | 7.6 | 3.2 | 0.40 | 0.8 | 4.5 | 1.16 | 0.22 | 12 | 24 | 75 | 8 | 6 |
| EHWSA610000S | 10 | 9.4 | 4.0 | 0.55 | 1.0 | 5.5 | 1.47 | 0.28 | 15 | 30 | 75 | 10 | 6 |
| EHWSA612000S | 12 | 11.4 | 4.8 | 0.70 | 1.2 | 6.5 | 1.77 | 0.34 | 18 | 36 | 75 | 12 | 6 |
EHWSA
d
L1 L2
d1
L
D
Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 026
| d | Tolerance |
| Ø | 0 ~ 0.02 |
| R | ± 0.02 |
