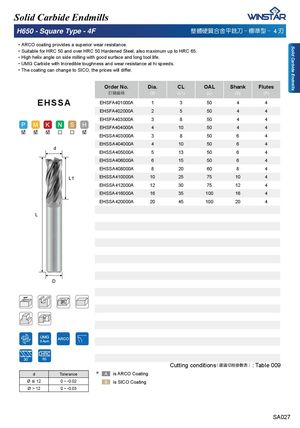

ᅚARCO coating provides a superior wear resistance. ᅚSuitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ᅚHigh helix angle on side milling with good surface and long tool life. ᅚUMG Carbide with Incredible toughness and wear resistance at hi speeds. ᅚ7KHFRDWLQJFDQFKDQJHWR6,&2WKHSULFHVZLOOGLႇHU
| Order No. ���� | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EHSFA401000A | 1 | 3 | 50 | 4 | 4 |
| EHSFA402000A | 2 | 5 | 50 | 4 | 4 |
| EHSFA403000A | 3 | 8 | 50 | 4 | 4 |
| EHSFA404000A | 4 | 10 | 50 | 4 | 4 |
| EHSSA403000A | 3 | 8 | 50 | 6 | 4 |
| EHSSA404000A | 4 | 10 | 50 | 6 | 4 |
| EHSSA405000A | 5 | 13 | 50 | 6 | 4 |
| EHSSA406000A | 6 | 15 | 50 | 6 | 4 |
| EHSSA408000A | 8 | 20 | 60 | 8 | 4 |
| EHSSA410000A | 10 | 25 | 75 | 10 | 4 |
| EHSSA412000A | 12 | 30 | 75 | 12 | 4 |
| EHSSA416000A | 16 | 35 | 100 | 16 | 4 |
| EHSSA420000A | 20 | 45 | 100 | 20 | 4 |
EHSSA
d
L
D
65
Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 009
| d | Tolerance | ✽ | is ARCO Coating |
| �12 | 0 ~ -0.02 | is SICO Coating | |
| �> 12 | 0 ~ -0.03 |
