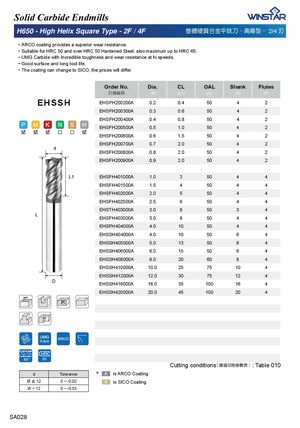

H650 - High Helix Square Type - 2F / 4F 㜃汣䧻幹▗捠。搠⎏ . 汧⤚ .!2/4 ⎒
ᅚARCO coating provides a superior wear resistance. ᅚSuitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ᅚUMG Carbide with Incredible toughness and wear resistance at hi speeds. ᅚGood surface and long tool life. ᅚ7KHFRDWLQJFDQFKDQJHWR6,&2WKHSULFHVZLOOGLႇHU
| Order No. ���� | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) | |
| EHSSH | EHSFH200200A | 0.2 | 0.4 | 50 | 4 | 2 |
| EHSFH200300A | 0.3 | 0.6 | 50 | 4 | 2 | |
| EHSFH200400A | 0.4 | 0.8 | 50 | 4 | 2 | |
| EHSFH200500A | 0.5 | 1.0 | 50 | 4 | 2 | |
| EHSFH200600A | 0.6 | 1.5 | 50 | 4 | 2 | |
| d | EHSFH200700A | 0.7 | 2.0 | 50 | 4 | 2 |
| EHSFH200800A | 0.8 | 2.0 | 50 | 4 | 2 | |
| EHSFH200900A | 0.9 | 2.0 | 50 | 4 | 2 | |
| L1 | EHSFH401000A | 1.0 | 3 | 50 | 4 | 4 |
| EHSFH401500A | 1.5 | 4 | 50 | 4 | 4 | |
| EHSFH402000A | 2.0 | 5 | 50 | 4 | 4 | |
| EHSFH402500A | 2.5 | 6 | 50 | 4 | 4 | |
| EHSTH403000A | 3.0 | 8 | 50 | 3 | 4 | |
| L | EHSFH403000A | 3.0 | 8 | 50 | 4 | 4 |
| EHSFH404000A | 4.0 | 10 | 50 | 4 | 4 | |
| EHSSH404000A | 4.0 | 10 | 50 | 6 | 4 | |
| EHSSH405000A | 5.0 | 13 | 50 | 6 | 4 | |
| EHSSH406000A | 6.0 | 15 | 50 | 6 | 4 | |
| EHSSH408000A | 8.0 | 20 | 60 | 8 | 4 | |
| EHSSH410000A | 10.0 | 25 | 75 | 10 | 4 | |
| EHSSH412000A | 12.0 | 30 | 75 | 12 | 4 | |
| D | EHSSH416000A | 16.0 | 35 | 100 | 16 | 4 |
| EHSSH420000A | 20.0 | 45 | 100 | 20 | 4 | |
| 65 |
| Cutting conditions���������: Table 010 | |||
| d | Tolerance | ✽ is ARCO Coating | |
| �12 | 0 ~ -0.02 | is SICO Coating | |
| �> 12 | 0 ~ -0.03 |
