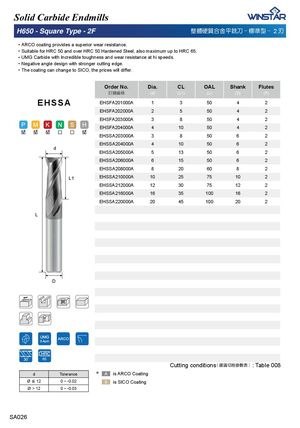

ᅚARCO coating provides a superior wear resistance. ᅚSuitable for HRC 50 and over HRC 50 Hardened Steel, also maximum up to HRC 65. ᅚUMG Carbide with Incredible toughness and wear resistance at hi speeds. ᅚNegative angle design with stronger cutting edge. ᅚ7KHFRDWLQJFDQFKDQJHWR6,&2WKHSULFHVZLOOGLႇHU
| Order No. ���� | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EHSFA201000A | 1 | 3 | 50 | 4 | 2 |
| EHSFA202000A | 2 | 5 | 50 | 4 | 2 |
| EHSFA203000A | 3 | 8 | 50 | 4 | 2 |
| EHSFA204000A | 4 | 10 | 50 | 4 | 2 |
| EHSSA203000A | 3 | 8 | 50 | 6 | 2 |
| EHSSA204000A | 4 | 10 | 50 | 6 | 2 |
| EHSSA205000A | 5 | 13 | 50 | 6 | 2 |
| EHSSA206000A | 6 | 15 | 50 | 6 | 2 |
| EHSSA208000A | 8 | 20 | 60 | 8 | 2 |
| EHSSA210000A | 10 | 25 | 75 | 10 | 2 |
| EHSSA212000A | 12 | 30 | 75 | 12 | 2 |
| EHSSA216000A | 16 | 35 | 100 | 16 | 2 |
| EHSSA220000A | 20 | 45 | 100 | 20 | 2 |
EHSSA
d
L
D
65
| Cutting conditions���������: Table 008 | |||
| d | Tolerance | ✽ is ARCO Coating | |
| �12 | 0 ~ -0.02 | is SICO Coating | |
| �> 12 | 0 ~ -0.03 |
