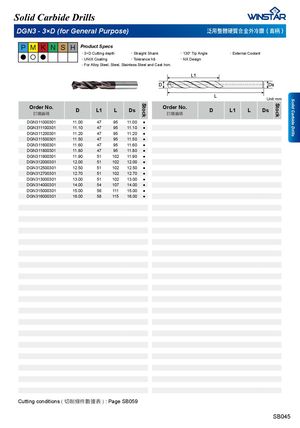

Stock Stock Solid Carbide Drills Solid Carbide Drills DGN3 - 3×D (for General Purpose) 泛用整體硬質合金外冷鑽 ( 直柄 ) P M K N S H Product Specs ．3×D Cutting depth ．Straight Shank ．130° Tip Angle ．External Coolant ● ○ ● ．UNIX Coating ．Tolerance h8 ．NX Design ．For Alloy Steel, Steel, Stainless Steel and Cast Iron. Unit:mm Order No.訂購編碼 D L1 L Ds Order No.訂購編碼 D L1 L Ds DGN311000301 11.00 47 95 11.00 ● DGN311100301 11.10 47 95 11.10 ● DGN311200301 11.20 47 95 11.20 ● DGN311500301 11.50 47 95 11.50 ● DGN311600301 11.60 47 95 11.60 ● DGN311800301 11.80 47 95 11.80 ● DGN311900301 11.90 51 102 11.90 ● DGN312000301 12.00 51 102 12.00 ● DGN312500301 12.50 51 102 12.50 ● DGN312700301 12.70 51 102 12.70 ● DGN313000301 13.00 51 102 13.00 ● DGN314000301 14.00 54 107 14.00 ● DGN315000301 15.00 56 111 15.00 ● DGN316000301 16.00 58 115 16.00 ● Cutting conditions ( 切削條件數據表 ) : Page SB059 SB045
