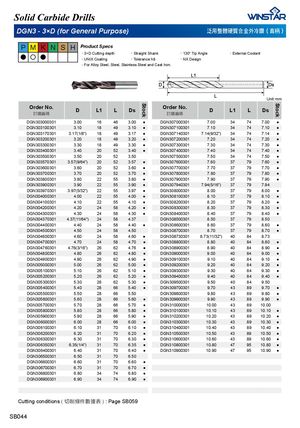

Stock Stock Solid Carbide Drills DGN3 - 3×D (for General Purpose) 泛用整體硬質合金外冷鑽 ( 直柄 ) P M K N S H Product Specs ．3×D Cutting depth ．Straight Shank ．130° Tip Angle ．External Coolant ● ○ ● ．UNIX Coating ．Tolerance h8 ．NX Design ．For Alloy Steel, Steel, Stainless Steel and Cast Iron. Unit:mm Order No.訂購編碼 D L1 L Ds Order No.訂購編碼 D L1 L Ds DGN303000301 3.00 16 46 3.00 ● DGN307000301 7.00 34 74 7.00 ● DGN303100301 3.10 18 49 3.10 ● DGN307100301 7.10 34 74 7.10 ● DGN303170301 3.17(1/8") 18 49 3.17 ● DGN307140301 7.14(9/32") 34 74 7.14 ● DGN303200301 3.20 18 49 3.20 ● DGN307200301 7.20 34 74 7.20 ● DGN303300301 3.30 18 49 3.30 ● DGN307300301 7.30 34 74 7.30 ● DGN303400301 3.40 20 52 3.40 ● DGN307400301 7.40 34 74 7.40 ● DGN303500301 3.50 20 52 3.50 DGN307500301 7.50 34 74 7.50 ● DGN303570301 3.57(9/64") 20 52 3.57 ● DGN307600301 7.60 37 79 7.60 ● DGN303600301 3.60 20 52 3.60 ● DGN307700301 7.70 37 79 7.70 ● DGN303700301 3.70 20 52 3.70 ● DGN307800301 7.80 37 79 7.80 ● DGN303800301 3.80 22 55 3.80 ● DGN307900301 7.90 37 79 7.90 ● DGN303900301 3.90 22 55 3.90 ● DGN307940301 7.94(5/16") 37 79 7.94 DGN303970301 3.97(5/32") 22 55 3.97 ● DGN308000301 8.00 37 79 8.00 ● DGN304000301 4.00 22 55 4.00 ● DGN308100301 8.10 37 79 8.10 ● DGN304100301 4.10 22 55 4.10 ● DGN308200301 8.20 37 79 8.20 ● DGN304200301 4.20 24 58 4.20 ● DGN308300301 8.30 37 79 8.30 ● DGN304300301 4.30 24 58 4.30 ● DGN308400301 8.40 37 79 8.40 ● DGN304370301 4.37(11/64") 24 58 4.37 DGN308500301 8.50 37 79 8.50 DGN304400301 4.40 24 58 4.40 ● DGN308600301 8.60 37 79 8.60 ● DGN304500301 4.50 24 58 4.50 DGN308700301 8.70 37 79 8.70 ● DGN304600301 4.60 24 58 4.60 ● DGN308730301 8.73(11/32") 40 84 8.73 DGN304700301 4.70 24 58 4.70 ● DGN308800301 8.80 40 84 8.80 ● DGN304760301 4.76(3/16") 26 62 4.76 ● DGN308900301 8.90 40 84 8.90 ● DGN304800301 4.80 26 62 4.80 ● DGN309000301 9.00 40 84 9.00 ● DGN304900301 4.90 26 62 4.90 ● DGN309100301 9.10 40 84 9.10 ● DGN305000301 5.00 26 62 5.00 ● DGN309200301 9.20 40 84 9.20 ● DGN305100301 5.10 26 62 5.10 ● DGN309300301 9.30 40 84 9.30 ● DGN305200301 5.20 26 62 5.20 ● DGN309400301 9.40 40 84 9.40 ● DGN305300301 5.30 26 62 5.30 ● DGN309500301 9.50 40 84 9.50 DGN305400301 5.40 28 66 5.40 ● DGN309700301 9.70 43 89 9.70 ● DGN305500301 5.50 28 66 5.50 DGN309800301 9.80 43 89 9.80 ● DGN305600301 5.60 28 66 5.60 ● DGN309900301 9.90 43 89 9.90 ● DGN305700301 5.70 28 66 5.70 ● DGN310000301 10.00 43 89 10.00 DGN305800301 5.80 28 66 5.80 ● DGN310100301 10.10 43 89 10.10 ● DGN305900301 5.90 28 66 5.90 ● DGN310200301 10.20 43 89 10.20 ● DGN306000301 6.00 28 66 6.00 ● DGN310300301 10.30 43 89 10.30 ● DGN306100301 6.10 31 70 6.10 ● DGN310400301 10.40 43 89 10.40 ● DGN306200301 6.20 31 70 6.20 ● DGN310500301 10.50 43 89 10.50 ● DGN306300301 6.30 31 70 6.30 ● DGN310600301 10.60 43 89 10.60 ● DGN306350301 6.35(1/4") 31 70 6.35 ● DGN310800301 10.80 47 95 10.80 ● DGN306400301 6.40 31 70 6.40 ● DGN310900301 10.90 47 95 10.90 ● DGN306500301 6.50 31 70 6.50 DGN306600301 6.60 31 70 6.60 ● DGN306700301 6.70 31 70 6.70 ● DGN306800301 6.80 34 74 6.80 ● DGN306900301 6.90 34 74 6.90 ● Cutting conditions ( 切削條件數據表 ) : Page SB059 SB044
