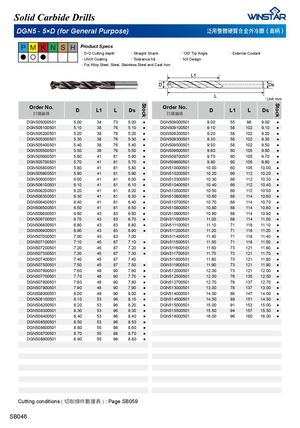

Stock Stock Solid Carbide Drills DGN5 - 5×D (for General Purpose) 泛用整體硬質合金外冷鑽 ( 直柄 ) P M K N S H Product Specs ．5×D Cutting depth ．Straight Shank ．130° Tip Angle ．External Coolant ● ○ ● ．UNIX Coating ．Tolerance h8 ．NX Design ．For Alloy Steel, Steel, Stainless Steel and Cast Iron. Unit:mm Order No.訂購編碼 D L1 L Ds Order No.訂購編碼 D L1 L Ds DGN505000501 5.00 34 73 5.00 ● DGN509000501 9.00 55 98 9.00 ● DGN505100501 5.10 38 76 5.10 ● DGN509100501 9.10 58 102 9.10 ● DGN505200501 5.20 38 76 5.20 ● DGN509200501 9.20 58 102 9.20 ● DGN505300501 5.30 38 76 5.30 ● DGN509300501 9.30 58 102 9.30 ● DGN505400501 5.40 38 76 5.40 ● DGN509500501 9.50 58 102 9.50 ● DGN505500501 5.50 38 76 5.50 ● DGN509600501 9.60 60 105 9.60 ● DGN505600501 5.60 41 81 5.60 ● DGN509700501 9.70 60 105 9.70 ● DGN505700501 5.70 41 81 5.70 ● DGN509800501 9.80 60 105 9.80 ● DGN505800501 5.80 41 81 5.80 ● DGN510000501 10.00 60 105 10.00 ● DGN505900501 5.90 41 81 5.90 ● DGN510200501 10.20 66 112 10.20 ● DGN506000501 6.00 41 81 6.00 ● DGN510300501 10.30 66 112 10.30 ● DGN506100501 6.10 41 81 6.10 ● DGN510400501 10.40 66 112 10.40 ● DGN506200501 6.20 41 81 6.20 ● DGN510500501 10.50 66 112 10.50 ● DGN506300501 6.30 41 81 6.30 ● DGN510600501 10.60 68 114 10.60 ● DGN506400501 6.40 41 81 6.40 ● DGN510700501 10.70 68 114 10.70 ● DGN506500501 6.50 41 81 6.50 ● DGN510800501 10.80 68 114 10.80 ● DGN506600501 6.60 43 83 6.60 ● DGN510900501 10.90 68 114 10.90 ● DGN506700501 6.70 43 83 6.70 ● DGN511000501 11.00 68 114 11.00 ● DGN506800501 6.80 43 83 6.80 ● DGN511100501 11.10 71 118 11.10 ● DGN506900501 6.90 43 83 6.90 ● DGN511200501 11.20 71 118 11.20 ● DGN507000501 7.00 43 83 7.00 DGN511400501 11.40 71 118 11.40 ● DGN507100501 7.10 45 87 7.10 ● DGN511500501 11.50 71 118 11.50 ● DGN507200501 7.20 45 87 7.20 ● DGN511600501 11.60 73 121 11.60 ● DGN507300501 7.30 45 87 7.30 ● DGN511700501 11.70 73 121 11.70 ● DGN507400501 7.40 45 87 7.40 DGN511800501 11.80 73 121 11.80 ● DGN507500501 7.50 45 87 7.50 ● DGN511900501 11.90 73 121 11.90 ● DGN507600501 7.60 48 90 7.60 ● DGN512000501 12.00 73 121 12.00 ● DGN507700501 7.70 48 90 7.70 ● DGN512500501 12.50 76 135 12.50 ● DGN507800501 7.80 48 90 7.80 ● DGN512700501 12.70 78 137 12.70 ● DGN507900501 7.90 48 90 7.90 ● DGN513000501 13.00 78 137 13.00 ● DGN508000501 8.00 48 90 8.00 ● DGN514000501 14.00 86 147 14.00 ● DGN508100501 8.10 53 96 8.10 ● DGN514500501 14.50 89 151 14.50 ● DGN508200501 8.20 53 96 8.20 ● DGN515000501 15.00 91 153 15.00 ● DGN508300501 8.30 53 96 8.30 ● DGN515500501 15.50 94 157 15.50 ● DGN508400501 8.40 53 96 8.40 ● DGN516000501 16.00 96 160 16.00 ● DGN508500501 8.50 53 96 8.50 ● DGN508600501 8.60 55 98 8.60 ● DGN508700501 8.70 55 98 8.70 ● DGN508800501 8.80 55 98 8.80 ● Cutting conditions ( 切削條件數據表 ) : Page SB059 SB046
