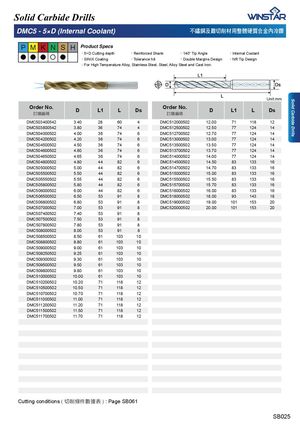

Каталог Winstar монолитный инструмент 2020 - страница 299

Solid Carbide Drills Solid Carbide Drills DMC5 - 5×D (Internal Coolant) ᾜ斌撋╙桲⎖⏙㣟䚷㜃汣䧻幹▗捠⋶⍆昌 P M K N S H Product Specs 虉5×D Cutting depth 虉Reinforced Shank 虉140° Tip Angle 虉Internal Coolant β β β ΰ β 虉SINIX Coating 虉Tolerance h8 虉Double Margins Design 虉NR Tip Design 虉For High Temperature Alloy, Stainless Steel, Steel, Alloy Steel and Cast Iron. Unit:mm Order No. D L1 L Ds Order No. D L1 L Ds 宑庋佷䩋 宑庋佷䩋 DMC503400542 3.40 28 60 4 DMC512000502 12.00 71 118 12 DMC503800542 3.80 36 74 4 DMC512500502 12.50 77 124 14 DMC504000502 4.00 36 74 6 DMC512700502 12.70 77 124 14 DMC504200502 4.20 36 74 6 DMC513000502 13.00 77 124 14 DMC504500502 4.50 36 74 6 DMC513500502 13.50 77 124 14 DMC504600502 4.60 36 74 6 DMC513700502 13.70 77 124 14 DMC504650502 4.65 36 74 6 DMC514000502 14.00 77 124 14 DMC504800502 4.80 44 82 6 DMC514500502 14.50 83 133 16 DMC505000502 5.00 44 82 6 DMC514700502 14.70 83 133 16 DMC505500502 5.50 44 82 6 DMC515000502 15.00 83 133 16 DMC505550502 5.55 44 82 6 DMC515500502 15.50 83 133 16 DMC505800502 5.80 44 82 6 DMC515700502 15.70 83 133 16 DMC506000502 6.00 44 82 6 DMC516000502 16.00 83 133 16 DMC506500502 6.50 53 91 8 DMC518000502 18.00 93 143 18 DMC506800502 6.80 53 91 8 DMC519000502 19.00 101 153 20 DMC507000502 7.00 53 91 8 DMC520000502 20.00 101 153 20 DMC507400502 7.40 53 91 8 DMC507500502 7.50 53 91 8 DMC507800502 7.80 53 91 8 DMC508000502 8.00 53 91 8 DMC508500502 8.50 61 103 10 DMC508800502 8.80 61 103 10 DMC509000502 9.00 61 103 10 DMC509250502 9.25 61 103 10 DMC509300502 9.30 61 103 10 DMC509500502 9.50 61 103 10 DMC509800502 9.80 61 103 10 DMC510000502 10.00 61 103 10 DMC510200502 10.20 71 118 12 DMC510500502 10.50 71 118 12 DMC510700502 10.70 71 118 12 DMC511000502 11.00 71 118 12 DMC511200502 11.20 71 118 12 DMC511500502 11.50 71 118 12 DMC511700502 11.70 71 118 12 Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page SB061 SB025
