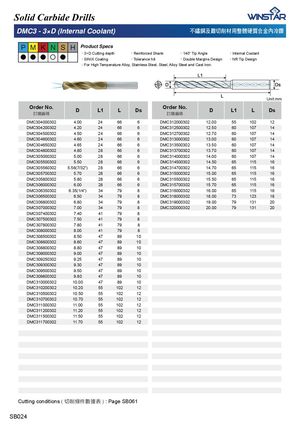

Solid Carbide Drills DMC3 - 3×D (Internal Coolant) ᾜ斌撋╙桲⎖⏙㣟䚷㜃汣䧻幹▗捠⋶⍆昌 P M K N S H Product Specs 虉3×D Cutting depth 虉Reinforced Shank 虉140° Tip Angle 虉Internal Coolant β β β ΰ β 虉SINIX Coating 虉Tolerance h8 虉Double Margins Design 虉NR Tip Design 虉For High Temperature Alloy, Stainless Steel, Steel, Alloy Steel and Cast Iron. Unit:mm Order No. D L1 L Ds Order No. D L1 L Ds 宑庋佷䩋 宑庋佷䩋 DMC304000302 4.00 24 66 6 DMC312000302 12.00 55 102 12 DMC304200302 4.20 24 66 6 DMC312500302 12.50 60 107 14 DMC304500302 4.50 24 66 6 DMC312700302 12.70 60 107 14 DMC304600302 4.60 24 66 6 DMC313000302 13.00 60 107 14 DMC304650302 4.65 24 66 6 DMC313500302 13.50 60 107 14 DMC304800302 4.80 28 66 6 DMC313700302 13.70 60 107 14 DMC305000302 5.00 28 66 6 DMC314000302 14.00 60 107 14 DMC305500302 5.50 28 66 6 DMC314500302 14.50 65 115 16 DMC305560302 5.56(7/32") 28 66 6 DMC314700302 14.70 65 115 16 DMC305700302 5.70 28 66 6 DMC315000302 15.00 65 115 16 DMC305800302 5.80 28 66 6 DMC315500302 15.50 65 115 16 DMC306000302 6.00 28 66 6 DMC315700302 15.70 65 115 16 DMC306350302 6.35(1/4") 34 79 8 DMC316000302 16.00 65 115 16 DMC306500302 6.50 34 79 8 DMC318000302 18.00 73 123 18 DMC306800302 6.80 34 79 8 DMC319000302 19.00 79 131 20 DMC307000302 7.00 34 79 8 DMC320000302 20.00 79 131 20 DMC307400302 7.40 41 79 8 DMC307500302 7.50 41 79 8 DMC307800302 7.80 41 79 8 DMC308000302 8.00 41 79 8 DMC308500302 8.50 47 89 10 DMC308600302 8.60 47 89 10 DMC308800302 8.80 47 89 10 DMC309000302 9.00 47 89 10 DMC309250302 9.25 47 89 10 DMC309300302 9.30 47 89 10 DMC309500302 9.50 47 89 10 DMC309800302 9.80 47 89 10 DMC310000302 10.00 47 89 10 DMC310200302 10.20 55 102 12 DMC310500302 10.50 55 102 12 DMC310700302 10.70 55 102 12 DMC311000302 11.00 55 102 12 DMC311200302 11.20 55 102 12 DMC311500302 11.50 55 102 12 DMC311700302 11.70 55 102 12 Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page SB061 SB024
