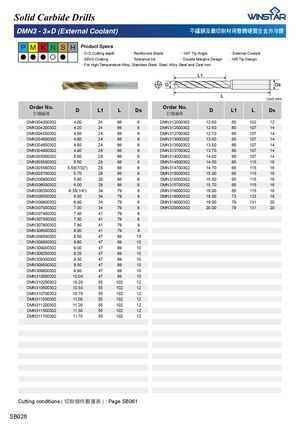

Каталог Winstar монолитный инструмент 2020 - страница 300

Solid Carbide Drills DMN3 - 3×D (External Coolant) ᾜ斌撋╙桲⎖⏙㣟䚷㜃汣䧻幹▗捠⪥⍆昌 P M K N S H Product Specs 虉3×D Cutting depth 虉Reinforced Shank 虉140° Tip Angle 虉External Coolant β β β ΰ β 虉SINIX Coating 虉Tolerance h8 虉Double Margins Design 虉NR Tip Design 虉For High Temperature Alloy, Stainless Steel, Steel, Alloy Steel and Cast Iron. Unit:mm Order No. D L1 L Ds Order No. D L1 L Ds 宑庋佷䩋 宑庋佷䩋 DMN304000302 4.00 24 66 6 DMN312000302 12.00 55 102 12 DMN304200302 4.20 24 66 6 DMN312500302 12.50 60 107 14 DMN304500302 4.50 24 66 6 DMN312700302 12.70 60 107 14 DMN304600302 4.60 24 66 6 DMN313000302 13.00 60 107 14 DMN304650302 4.65 24 66 6 DMN313500302 13.50 60 107 14 DMN304800302 4.80 28 66 6 DMN313700302 13.70 60 107 14 DMN305000302 5.00 28 66 6 DMN314000302 14.00 60 107 14 DMN305500302 5.50 28 66 6 DMN314500302 14.50 65 115 16 DMN305560302 5.56(7/32") 28 66 6 DMN314700302 14.70 65 115 16 DMN305700302 5.70 28 66 6 DMN315000302 15.00 65 115 16 DMN305800302 5.80 28 66 6 DMN315500302 15.50 65 115 16 DMN306000302 6.00 28 66 6 DMN315700302 15.70 65 115 16 DMN306350302 6.35(1/4") 34 79 8 DMN316000302 16.00 65 115 16 DMN306500302 6.50 34 79 8 DMN318000302 18.00 73 123 18 DMN306800302 6.80 34 79 8 DMN319000302 19.00 79 131 20 DMN307000302 7.00 34 79 8 DMN320000302 20.00 79 131 20 DMN307400302 7.40 41 79 8 DMN307500302 7.50 41 79 8 DMN307800302 7.80 41 79 8 DMN308000302 8.00 41 79 8 DMN308500302 8.50 47 89 10 DMN308800302 8.80 47 89 10 DMN309000302 9.00 47 89 10 DMN309250302 9.25 47 89 10 DMN309300302 9.30 47 89 10 DMN309500302 9.50 47 89 10 DMN309800302 9.80 47 89 10 DMN310000302 10.00 47 89 10 DMN310200302 10.20 55 102 12 DMN310500302 10.50 55 102 12 DMN310700302 10.70 55 102 12 DMN311000302 11.00 55 102 12 DMN311200302 11.20 55 102 12 DMN311500302 11.50 55 102 12 DMN311700302 11.70 55 102 12 Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page SB061 SB026
