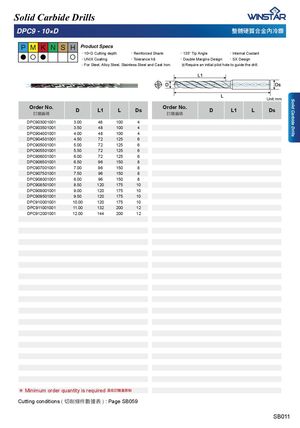

Каталог Winstar монолитный инструмент 2020 - страница 285

Solid Carbide Drills Solid Carbide Drills DPC9 - 10×D 㜃汣䧻幹▗捠⋶⍆昌 P M K N S H Product Specs 虉10×D Cutting depth 虉Reinforced Shank 虉135° Tip Angle 虉Internal Coolant β ΰ β ΰ 虉UNIX Coating 虉Tolerance h8 虉Double Margins Design 虉SX Design 虉For Steel, Alloy Steel, Stainless Steel and Cast Iron. ʰRequire an initial pilot hole to guide the drill. Unit:mm Order No. D L1 L Ds Order No. D L1 L Ds 宑庋佷䩋 宑庋佷䩋 DPC903001001 3.00 48 100 4 DPC903501001 3.50 48 100 4 DPC904001001 4.00 48 100 4 DPC904501001 4.50 72 125 6 DPC905001001 5.00 72 125 6 DPC905501001 5.50 72 125 6 DPC906001001 6.00 72 125 6 DPC906501001 6.50 96 150 8 DPC907001001 7.00 96 150 8 DPC907501001 7.50 96 150 8 DPC908001001 8.00 96 150 8 DPC908501001 8.50 120 175 10 DPC909001001 9.00 120 175 10 DPC909501001 9.50 120 175 10 DPC910001001 10.00 120 175 10 DPC911001001 11.00 132 200 12 DPC912001001 12.00 144 200 12 ρ Minimum order quantity is required 㢏⃝宑庋捞柟⏅ Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page SB059 SB011
