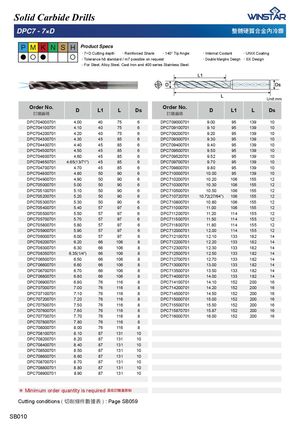

Solid Carbide Drills DPC7 - 7×D 㜃汣䧻幹▗捠⋶⍆昌 P M K N S H Product Specs 虉7×D Cutting depth 虉Reinforced Shank 虉140° Tip Angle 虉Internal Coolant 虉UNIX Coating β ΰ β ΰ 虉Tolerance h8 standard / m7 possible on request 虉Double Margins Design 虉SX Design 虉For Steel, Alloy Steel, Cast Iron and 400 series Stainless Steel. Unit:mm Order No. D L1 L Ds Order No. D L1 L Ds 宑庋佷䩋 宑庋佷䩋 DPC704000701 4.00 40 75 6 DPC709000701 9.00 95 139 10 DPC704100701 4.10 40 75 6 DPC709100701 9.10 95 139 10 DPC704200701 4.20 40 75 6 DPC709200701 9.20 95 139 10 DPC704300701 4.30 45 85 6 DPC709300701 9.30 95 139 10 DPC704400701 4.40 45 85 6 DPC709400701 9.40 95 139 10 DPC704500701 4.50 45 85 6 DPC709500701 9.50 95 139 10 DPC704600701 4.60 45 85 6 DPC709520701 9.52 95 139 10 DPC704650701 4.65(13/71") 45 85 6 DPC709700701 9.70 95 139 10 DPC704700701 4.70 45 85 6 DPC709800701 9.80 95 139 10 DPC704800701 4.80 50 90 6 DPC710000701 10.00 95 139 10 DPC704900701 4.90 50 90 6 DPC710200701 10.20 106 155 12 DPC705000701 5.00 50 90 6 DPC710300701 10.30 106 155 12 DPC705100701 5.10 50 90 6 DPC710500701 10.50 106 155 12 DPC705200701 5.20 50 90 6 DPC710720701 10.72(27/64") 106 155 12 DPC705300701 5.30 50 90 6 DPC710800701 10.80 106 155 12 DPC705400701 5.40 57 97 6 DPC711000701 11.00 106 155 12 DPC705500701 5.50 57 97 6 DPC711200701 11.20 114 155 12 DPC705700701 5.70 57 97 6 DPC711500701 11.50 114 155 12 DPC705800701 5.80 57 97 6 DPC711800701 11.80 114 155 12 DPC705900701 5.90 57 97 6 DPC712000701 12.00 114 155 12 DPC706000701 6.00 57 97 6 DPC712100701 12.10 133 182 14 DPC706200701 6.20 66 106 8 DPC712200701 12.20 133 182 14 DPC706300701 6.30 66 106 8 DPC712300701 12.30 133 182 14 DPC706350701 6.35(1/4") 66 106 8 DPC712500701 12.50 133 182 14 DPC706500701 6.50 66 106 8 DPC712700701 12.70 133 182 14 DPC706600701 6.60 66 106 8 DPC713000701 13.00 133 182 14 DPC706700701 6.70 66 106 8 DPC713500701 13.50 133 182 14 DPC706800701 6.80 66 106 8 DPC714000701 14.00 133 182 14 DPC706900701 6.90 76 116 8 DPC714100701 14.10 152 200 16 DPC707000701 7.00 76 116 8 DPC714200701 14.20 152 200 16 DPC707100701 7.10 76 116 8 DPC714500701 14.50 152 200 16 DPC707200701 7.20 76 116 8 DPC715000701 15.00 152 200 16 DPC707500701 7.50 76 116 8 DPC715500701 15.50 152 200 16 DPC707600701 7.60 76 116 8 DPC715870701 15.87 152 200 16 DPC707700701 7.70 76 116 8 DPC716000701 16.00 152 200 16 DPC707800701 7.80 76 116 8 DPC708000701 8.00 76 116 8 DPC708100701 8.10 87 131 10 DPC708200701 8.20 87 131 10 DPC708400701 8.40 87 131 10 DPC708500701 8.50 87 131 10 DPC708600701 8.60 87 131 10 DPC708700701 8.70 87 131 10 DPC708800701 8.80 87 131 10 DPC708900701 8.90 87 131 10 ρ Minimum order quantity is required 㢏⃝宑庋捞柟⏅ Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page SB059 SB010
