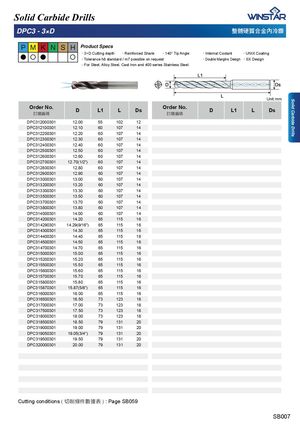

Solid Carbide Drills Solid Carbide Drills DPC3 - 3×D 㜃汣䧻幹▗捠⋶⍆昌 P M K N S H Product Specs 虉3×D Cutting depth 虉Reinforced Shank 虉140° Tip Angle 虉Internal Coolant 虉UNIX Coating β ΰ β ΰ 虉Tolerance h8 standard / m7 possible on request 虉Double Margins Design 虉SX Design 虉For Steel, Alloy Steel, Cast Iron and 400 series Stainless Steel. Unit:mm Order No. D L1 L Ds Order No. D L1 L Ds 宑庋佷䩋 宑庋佷䩋 DPC312000301 12.00 55 102 12 DPC312100301 12.10 60 107 14 DPC312200301 12.20 60 107 14 DPC312300301 12.30 60 107 14 DPC312400301 12.40 60 107 14 DPC312500301 12.50 60 107 14 DPC312600301 12.60 60 107 14 DPC312700301 12.70(1/2") 60 107 14 DPC312800301 12.80 60 107 14 DPC312900301 12.90 60 107 14 DPC313000301 13.00 60 107 14 DPC313200301 13.20 60 107 14 DPC313300301 13.30 60 107 14 DPC313500301 13.50 60 107 14 DPC313700301 13.70 60 107 14 DPC313800301 13.80 60 107 14 DPC314000301 14.00 60 107 14 DPC314200301 14.20 65 115 16 DPC314290301 14.29(9/16") 65 115 16 DPC314300301 14.30 65 115 16 DPC314400301 14.40 65 115 16 DPC314500301 14.50 65 115 16 DPC314700301 14.70 65 115 16 DPC315000301 15.00 65 115 16 DPC315200301 15.20 65 115 16 DPC315500301 15.50 65 115 16 DPC315600301 15.60 65 115 16 DPC315700301 15.70 65 115 16 DPC315800301 15.80 65 115 16 DPC315870301 15.87(5/8") 65 115 16 DPC316000301 16.00 65 115 16 DPC316500301 16.50 73 123 18 DPC317000301 17.00 73 123 18 DPC317500301 17.50 73 123 18 DPC318000301 18.00 73 123 18 DPC318500301 18.50 79 131 20 DPC319000301 19.00 79 131 20 DPC319050301 19.05(3/4") 79 131 20 DPC319500301 19.50 79 131 20 DPC320000301 20.00 79 131 20 Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page SB059 SB007
