Каталог Winstar монолитный инструмент 2020 - страница 282

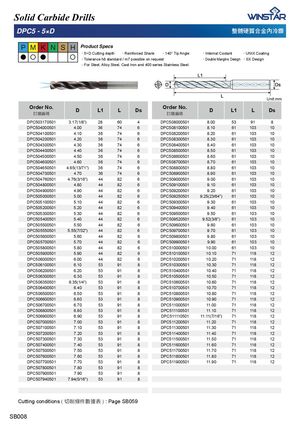

Solid Carbide Drills DPC5 - 5×D 㜃汣䧻幹▗捠⋶⍆昌 P M K N S H Product Specs 虉5×D Cutting depth 虉Reinforced Shank 虉140° Tip Angle 虉Internal Coolant 虉UNIX Coating β ΰ β ΰ 虉Tolerance h8 standard / m7 possible on request 虉Double Margins Design 虉SX Design 虉For Steel, Alloy Steel, Cast Iron and 400 series Stainless Steel. Unit:mm Order No. D L1 L Ds Order No. D L1 L Ds 宑庋佷䩋 宑庋佷䩋 DPC503170501 3.17(1/8") 28 60 4 DPC508000501 8.00 53 91 8 DPC504000501 4.00 36 74 6 DPC508100501 8.10 61 103 10 DPC504100501 4.10 36 74 6 DPC508200501 8.20 61 103 10 DPC504200501 4.20 36 74 6 DPC508300501 8.30 61 103 10 DPC504300501 4.30 36 74 6 DPC508400501 8.40 61 103 10 DPC504400501 4.40 36 74 6 DPC508500501 8.50 61 103 10 DPC504500501 4.50 36 74 6 DPC508600501 8.60 61 103 10 DPC504600501 4.60 36 74 6 DPC508700501 8.70 61 103 10 DPC504650501 4.65(13/71") 36 74 6 DPC508800501 8.80 61 103 10 DPC504700501 4.70 36 74 6 DPC508900501 8.90 61 103 10 DPC504760501 4.76(3/16") 44 82 6 DPC509000501 9.00 61 103 10 DPC504800501 4.80 44 82 6 DPC509100501 9.10 61 103 10 DPC504900501 4.90 44 82 6 DPC509200501 9.20 61 103 10 DPC505000501 5.00 44 82 6 DPC509250501 9.25(23/64") 61 103 10 DPC505100501 5.10 44 82 6 DPC509300501 9.30 61 103 10 DPC505200501 5.20 44 82 6 DPC509400501 9.40 61 103 10 DPC505300501 5.30 44 82 6 DPC509500501 9.50 61 103 10 DPC505400501 5.40 44 82 6 DPC509520501 9.52(3/8") 61 103 10 DPC505500501 5.50 44 82 6 DPC509600501 9.60 61 103 10 DPC505550501 5.55(7/32") 44 82 6 DPC509700501 9.70 61 103 10 DPC505600501 5.60 44 82 6 DPC509800501 9.80 61 103 10 DPC505700501 5.70 44 82 6 DPC509900501 9.90 61 103 10 DPC505800501 5.80 44 82 6 DPC510000501 10.00 61 103 10 DPC505900501 5.90 44 82 6 DPC510100501 10.10 71 118 12 DPC506000501 6.00 44 82 6 DPC510200501 10.20 71 118 12 DPC506100501 6.10 53 91 8 DPC510300501 10.30 71 118 12 DPC506200501 6.20 53 91 8 DPC510400501 10.40 71 118 12 DPC506300501 6.30 53 91 8 DPC510500501 10.50 71 118 12 DPC506350501 6.35(1/4") 53 91 8 DPC510600501 10.60 71 118 12 DPC506400501 6.40 53 91 8 DPC510700501 10.70 71 118 12 DPC506500501 6.50 53 91 8 DPC510800501 10.80 71 118 12 DPC506600501 6.60 53 91 8 DPC510900501 10.90 71 118 12 DPC506700501 6.70 53 91 8 DPC511000501 11.00 71 118 12 DPC506800501 6.80 53 91 8 DPC511100501 11.10 71 118 12 DPC506900501 6.90 53 91 8 DPC511110501 11.11(7/16") 71 118 12 DPC507000501 7.00 53 91 8 DPC511200501 11.20 71 118 12 DPC507100501 7.10 53 91 8 DPC511300501 11.30 71 118 12 DPC507200501 7.20 53 91 8 DPC511400501 11.40 71 118 12 DPC507300501 7.30 53 91 8 DPC511500501 11.50 71 118 12 DPC507400501 7.40 53 91 8 DPC511600501 11.60 71 118 12 DPC507500501 7.50 53 91 8 DPC511700501 11.70 71 118 12 DPC507600501 7.60 53 91 8 DPC511800501 11.80 71 118 12 DPC507700501 7.70 53 91 8 DPC511900501 11.90 71 118 12 DPC507800501 7.80 53 91 8 DPC507900501 7.90 53 91 8 DPC507940501 7.94(5/16") 53 91 8 Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page SB059 SB008
