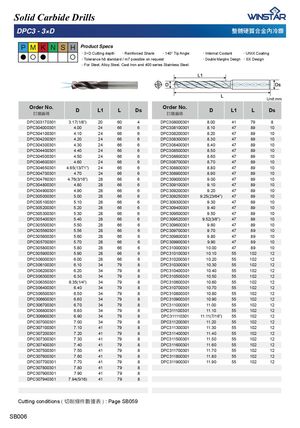

Каталог Winstar монолитный инструмент 2020 - страница 280

Solid Carbide Drills DPC3 - 3×D 㜃汣䧻幹▗捠⋶⍆昌 P M K N S H Product Specs 虉3×D Cutting depth 虉Reinforced Shank 虉140° Tip Angle 虉Internal Coolant 虉UNIX Coating β ΰ β ΰ 虉Tolerance h8 standard / m7 possible on request 虉Double Margins Design 虉SX Design 虉For Steel, Alloy Steel, Cast Iron and 400 series Stainless Steel. Unit:mm Order No. D L1 L Ds Order No. D L1 L Ds 宑庋佷䩋 宑庋佷䩋 DPC303170301 3.17(1/8") 20 60 4 DPC308000301 8.00 41 79 8 DPC304000301 4.00 24 66 6 DPC308100301 8.10 47 89 10 DPC304100301 4.10 24 66 6 DPC308200301 8.20 47 89 10 DPC304200301 4.20 24 66 6 DPC308300301 8.30 47 89 10 DPC304300301 4.30 24 66 6 DPC308400301 8.40 47 89 10 DPC304400301 4.40 24 66 6 DPC308500301 8.50 47 89 10 DPC304500301 4.50 24 66 6 DPC308600301 8.60 47 89 10 DPC304600301 4.60 24 66 6 DPC308700301 8.70 47 89 10 DPC304650301 4.65(13/71") 24 66 6 DPC308800301 8.80 47 89 10 DPC304700301 4.70 24 66 6 DPC308900301 8.90 47 89 10 DPC304760301 4.76(3/16") 28 66 6 DPC309000301 9.00 47 89 10 DPC304800301 4.80 28 66 6 DPC309100301 9.10 47 89 10 DPC304900301 4.90 28 66 6 DPC309200301 9.20 47 89 10 DPC305000301 5.00 28 66 6 DPC309250301 9.25(23/64") 47 89 10 DPC305100301 5.10 28 66 6 DPC309300301 9.30 47 89 10 DPC305200301 5.20 28 66 6 DPC309400301 9.40 47 89 10 DPC305300301 5.30 28 66 6 DPC309500301 9.50 47 89 10 DPC305400301 5.40 28 66 6 DPC309520301 9.52(3/8") 47 89 10 DPC305500301 5.50 28 66 6 DPC309600301 9.60 47 89 10 DPC305560301 5.56 28 66 6 DPC309700301 9.70 47 89 10 DPC305600301 5.60 28 66 6 DPC309800301 9.80 47 89 10 DPC305700301 5.70 28 66 6 DPC309900301 9.90 47 89 10 DPC305800301 5.80 28 66 6 DPC310000301 10.00 47 89 10 DPC305900301 5.90 28 66 6 DPC310100301 10.10 55 102 12 DPC306000301 6.00 28 66 6 DPC310200301 10.20 55 102 12 DPC306100301 6.10 34 79 8 DPC310300301 10.30 55 102 12 DPC306200301 6.20 34 79 8 DPC310400301 10.40 55 102 12 DPC306300301 6.30 34 79 8 DPC310500301 10.50 55 102 12 DPC306350301 6.35(1/4") 34 79 8 DPC310600301 10.60 55 102 12 DPC306400301 6.40 34 79 8 DPC310700301 10.70 55 102 12 DPC306500301 6.50 34 79 8 DPC310800301 10.80 55 102 12 DPC306600301 6.60 34 79 8 DPC310900301 10.90 55 102 12 DPC306700301 6.70 34 79 8 DPC311000301 11.00 55 102 12 DPC306800301 6.80 34 79 8 DPC311100301 11.10 55 102 12 DPC306900301 6.90 34 79 8 DPC311110301 11.11(7/16") 55 102 12 DPC307000301 7.00 34 79 8 DPC311200301 11.20 55 102 12 DPC307100301 7.10 41 79 8 DPC311300301 11.30 55 102 12 DPC307200301 7.20 41 79 8 DPC311400301 11.40 55 102 12 DPC307300301 7.30 41 79 8 DPC311500301 11.50 55 102 12 DPC307400301 7.40 41 79 8 DPC311600301 11.60 55 102 12 DPC307500301 7.50 41 79 8 DPC311700301 11.70 55 102 12 DPC307600301 7.60 41 79 8 DPC311800301 11.80 55 102 12 DPC307700301 7.70 41 79 8 DPC311900301 11.90 55 102 12 DPC307800301 7.80 41 79 8 DPC307900301 7.90 41 79 8 DPC307940301 7.94(5/16) 41 79 8 Cutting conditions ( ⎖⏙㨬₅㜇㙩姷 ) : Page SB059 SB006
