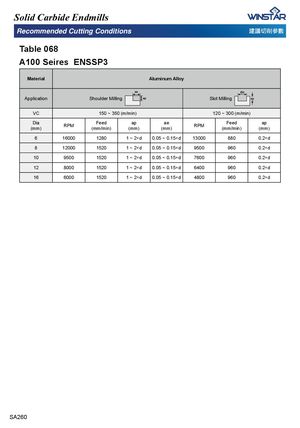

Solid Carbide Endmills Recommended Cutting Conditions ら峿⎖⏙╒㜇 Table 068 A100 Seires ENSSP3 Material Aluminum Alloy Application Shoulder Milling Slot Milling VC 150 ~ 350 (m/min) 120 ~ 300 (m/min) Dia(mm) RPM Feed(mm/min) ap(mm) ae(mm) RPM Feed(mm/min) ap(mm) 6 16000 1280 1 ~ 2×d 0.05 ~ 0.15×d 13000 880 0.2×d 8 12000 1520 1 ~ 2×d 0.05 ~ 0.15×d 9500 960 0.2×d 10 9500 1520 1 ~ 2×d 0.05 ~ 0.15×d 7600 960 0.2×d 12 8000 1520 1 ~ 2×d 0.05 ~ 0.15×d 6400 960 0.2×d 16 6000 1520 1 ~ 2×d 0.05 ~ 0.15×d 4800 960 0.2×d SA260
