Каталог Winstar монолитный инструмент 2020 - страница 269

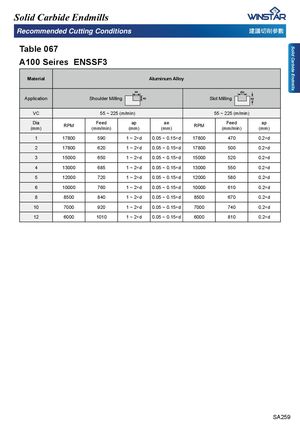

Solid Carbide Endmills Solid Carbide Endmills Recommended Cutting Conditions ら峿⎖⏙╒㜇 Table 067 A100 Seires ENSSF3 Material Aluminum Alloy Application Shoulder Milling Slot Milling VC 55 ~ 225 (m/min) 55 ~ 225 (m/min) Dia(mm) RPM Feed(mm/min) ap(mm) ae(mm) RPM Feed(mm/min) ap(mm) 1 17800 590 1 ~ 2×d 0.05 ~ 0.15×d 17800 470 0.2×d 2 17800 620 1 ~ 2×d 0.05 ~ 0.15×d 17800 500 0.2×d 3 15000 650 1 ~ 2×d 0.05 ~ 0.15×d 15000 520 0.2×d 4 13000 685 1 ~ 2×d 0.05 ~ 0.15×d 13000 550 0.2×d 5 12000 720 1 ~ 2×d 0.05 ~ 0.15×d 12000 580 0.2×d 6 10000 760 1 ~ 2×d 0.05 ~ 0.15×d 10000 610 0.2×d 8 8500 840 1 ~ 2×d 0.05 ~ 0.15×d 8500 670 0.2×d 10 7000 920 1 ~ 2×d 0.05 ~ 0.15×d 7000 740 0.2×d 12 6000 1010 1 ~ 2×d 0.05 ~ 0.15×d 6000 810 0.2×d SA259
