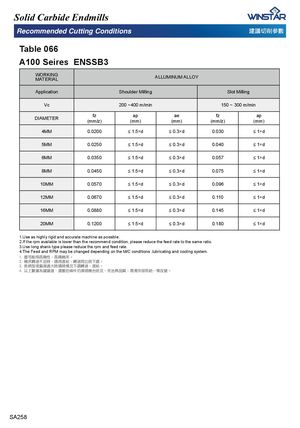

Solid Carbide Endmills Recommended Cutting Conditions ら峿⎖⏙╒㜇 Table 066 A100 Seires ENSSB3 WORKINGMATERIAL ALLUMINUM ALLOY Application Shoulder Milling Slot Milling Vc 200 ~400 m/min 150 ~ 300 m/min DIAMETER fz(mm/z) ap(mm) ae fz ap(mm)(mm/z)(mm) 4MM 0.0200 ”îG ”îG 0.030 ”îG 5MM 0.0250 ”îG ”îG 0.040 ”îG 6MM 0.0350 ”îG ”îG 0.057 ”îG 8MM 0.0450 ”îG ”îG 0.075 ”îG 10MM 0.0570 ”îG ”îG 0.096 ”îG 12MM 0.0670 ”îG ”îG 0.110 ”îG 16MM 0.0880 ”îG ”îG 0.145 ”îG 20MM 0.1200 ”îG ”îG 0.180 ”îG 1.Use as highly rigid and accurate machine as possible. 2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio. 3.Use long shank type please reduce the rpm and feed rate. 4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system. 2/ 䡰╾劌䚷汧⏪ㆶҷ汧乍㯮〙Ҹ 3/ 㯮〙惘憮ᾜ彂㟑虇屚ⶖ懁仵ҷ惘憮▛㵣ℚᾚ屎Ҹ 4/ 朆㥓⤚㎥⇞㚉懝⪶㟑屚嬥㉔㹐ᾚ屎惘憮ҷ懁仵Ҹ 5/ ⁴ᾙ㜇㙩䉉ら峿⇋虇懸䜅䠓㨬₅⁜榗嬥㯮╿䑏㹐ҷ⫍㹊⌆♐幹ҷ䃳䁠⍆┊亊伀ʫ䳘㛈崙Ҹ SA258
