Каталог Winstar монолитный инструмент 2020 - страница 267

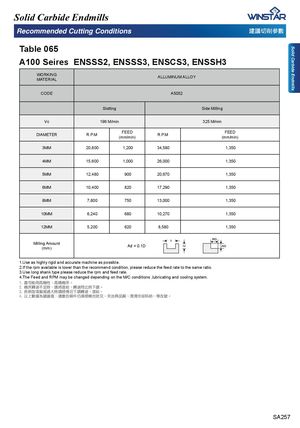

Solid Carbide Endmills Solid Carbide Endmills Recommended Cutting Conditions ら峿⎖⏙╒㜇 Table 065 A100 Seires ENSSS2, ENSSS3, ENSCS3, ENSSH3 WORKINGMATERIAL ALLUMINUM ALLOY CODE A5052 Slotting Side Milling Vc 196 M/min 325 M/min DIAMETER R.P.M FEED(mm/min) R.P.M FEED(mm/min) 3MM 20,800 1,200 34,580 1,350 4MM 15,600 1,000 26,000 1,350 5MM 12,480 900 20,670 1,350 6MM 10,400 820 17,290 1,350 8MM 7,800 750 13,000 1,350 10MM 6,240 680 10,270 1,350 12MM 5,200 620 8,580 1,350 Milling Amount(mm) DAd = 0.1D Ad 1.Use as highly rigid and accurate machine as possible. 2.If the rpm available is lower than the recommend condition, please reduce the feed rate to the same ratio. 3.Use long shank type please reduce the rpm and feed rate. 4.The Feed and RPM may be changed depending on the M/C conditions ,lubricating and cooling system. 2/ 䡰╾劌䚷汧⏪ㆶҷ汧乍㯮〙Ҹ 3/ 㯮〙惘憮ᾜ彂㟑虇屚ⶖ懁仵ҷ惘憮▛㵣ℚᾚ屎Ҹ 4/ 朆㥓⤚㎥⇞㚉懝⪶㟑屚嬥㉔㹐ᾚ屎惘憮ҷ懁仵Ҹ 5/ ⁴ᾙ㜇㙩䉉ら峿⇋虇懸䜅䠓㨬₅⁜榗嬥㯮╿䑏㹐ҷ⫍㹊⌆♐幹ҷ䃳䁠⍆┊亊伀ʫ䳘㛈崙Ҹ SA257
