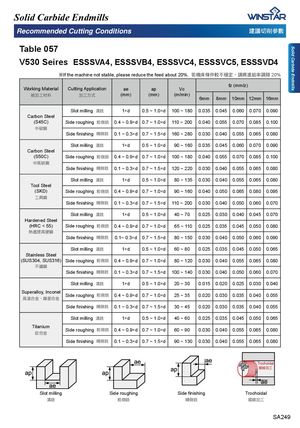

Solid Carbide Endmills Solid Carbide Endmills Recommended Cutting Conditions ら峿⎖⏙╒㜇 Table 057 V530 Seires ESSSVA4, ESSSVB4, ESSSVC4, ESSSVC5, ESSSVD4 ʰIf the machine not stable, please reduce the feed about 20%. 呴㯮〙㨬₅悒ᾜ䯸⴩虇屚ⶖ懁仵䔖屎柜 20% Working Material Cutting Application ae ap Vc fz (mm/z) 娺␯⽴㣟㜨 ␯⽴㝈ゞ (mm) (mm) (m/min) 6mm 8mm 10mm 12mm 16mm Slot milling 䀬搠 1×d 0.5 ~ 1.0×d 100 ~ 180 0.035 0.045 0.060 0.070 0.090 Carbon Steel (S45C) Side roughing 並∃搠 0.4 ~ 0.9×d 0.7 ~ 1.0×d 110 ~ 200 0.040 0.055 0.070 0.085 0.100 ᾼ䩂撋 6LGH¿QLVKLQJ乍∃搠 0.1 ~ 0.3×d 0.7 ~ 1.5×d 160 ~ 280 0.030 0.040 0.055 0.065 0.080 Slot milling 䀬搠 1×d 0.5 ~ 1.0×d 90 ~ 160 0.035 0.045 0.060 0.070 0.090 Carbon Steel (S50C) Side roughing 並∃搠 0.4 ~ 0.9×d 0.7 ~ 1.0×d 100 ~ 180 0.040 0.055 0.070 0.085 0.100 ᾼ汧䩂撋 6LGH¿QLVKLQJ乍∃搠 0.1 ~ 0.3×d 0.7 ~ 1.5×d 120 ~ 220 0.030 0.040 0.055 0.065 0.080 Slot milling 䀬搠 1×d 0.5 ~ 1.0×d 80 ~ 135 0.030 0.040 0.055 0.065 0.080 Tool Steel (SKD) Side roughing 並∃搠 0.4 ~ 0.9×d 0.7 ~ 1.0×d 90 ~ 160 0.040 0.050 0.065 0.080 0.095 ⽴⌆撋 6LGH¿QLVKLQJ乍∃搠 0.1 ~ 0.3×d 0.7 ~ 1.5×d 110 ~ 200 0.030 0.040 0.050 0.060 0.070 Slot milling 䀬搠 1×d 0.5 ~ 1.0×d 40 ~ 70 0.025 0.030 0.040 0.045 0.070 Hardened Steel (HRC < 55) Side roughing 並∃搠 0.4 ~ 0.9×d 0.7 ~ 1.0×d 65 ~ 110 0.025 0.035 0.045 0.050 0.080 䍀埤䖕汧䧻撋 6LGH¿QLVKLQJ乍∃搠 0.1~ 0.3×d 0.7 ~ 1.5×d 80 ~ 150 0.030 0.040 0.050 0.060 0.090 Slot milling 䀬搠 1×d 0.5 ~ 1.0×d 60 ~ 80 0.025 0.035 0.045 0.050 0.065 Stainless Steel (SUS304, SUS316) Side roughing 並∃搠 0.4 ~ 0.9×d 0.7 ~ 1.0×d 80 ~ 120 0.030 0.040 0.055 0.065 0.080 ᾜ斌撋 6LGH¿QLVKLQJ乍∃搠 0.1 ~ 0.3×d 0.7 ~ 1.5×d 100 ~ 140 0.030 0.040 0.050 0.060 0.070 Slot milling 䀬搠 1×d 0.5 ~ 1.0×d 20 ~ 30 0.015 0.020 0.025 0.030 0.040 Superalloy, Inconel Side roughing 並∃搠 0.4 ~ 0.9×d 0.7 ~ 1.0×d 25 ~ 35 0.020 0.030 0.035 0.040 0.055 汧䀺▗捠ҷ敂⦉▗捠 6LGH¿QLVKLQJ乍∃搠 0.1 ~ 0.3×d 0.7 ~ 1.5×d 30 ~ 45 0.020 0.030 0.035 0.040 0.055 Slot milling 䀬搠 1×d 0.5 ~ 1.0×d 40 ~ 60 0.025 0.035 0.045 0.050 0.065 Titanium Side roughing 並∃搠 0.4 ~ 0.9×d 0.7 ~ 1.0×d 60 ~ 90 0.030 0.040 0.055 0.065 0.080 掵▗捠 6LGH¿QLVKLQJ乍∃搠 0.1 ~ 0.3×d 0.7 ~ 1.5×d 90 ~ 130 0.030 0.040 0.055 0.065 0.080 Trochoidal 㚉佩␯⽴ Slot milling Side roughing 6LGH¿QLVKLQJ Trochoidal 䀬搠 並∃搠 乍∃搠 㚉佩␯⽴ SA249
