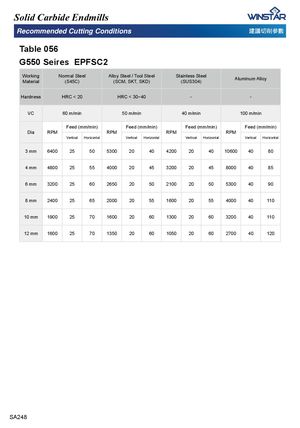

Solid Carbide Endmills Recommended Cutting Conditions ら峿⎖⏙╒㜇 Table 056 G550 Seires EPFSC2 Working Normal Steel Alloy Steel / Tool Steel! Stainless Steel!Material(S45C)(SCM, SKT, SKD)(SUS304)Aluminum Alloy Hardness HRC < 20 HRC < 30~40 - - VC 60 m/min 50 m/min 40 m/min 100 m/min Feed (mm/min) Feed (mm/min) Feed (mm/min) Feed (mm/min) Dia RPM RPM RPM RPM Vertical Horizontal Vertical Horizontal Vertical Horizontal Vertical Horizontal 3 mm 6400 25 50 5300 20 40 4200 20 40 10600 40 80 4 mm 4800 25 55 4000 20 45 3200 20 45 8000 40 85 6 mm 3200 25 60 2650 20 50 2100 20 50 5300 40 90 8 mm 2400 25 65 2000 20 55 1600 20 55 4000 40 110 10 mm 1900 25 70 1600 20 60 1300 20 60 3200 40 110 12 mm 1600 25 70 1350 20 60 1050 20 60 2700 40 120 SA248
