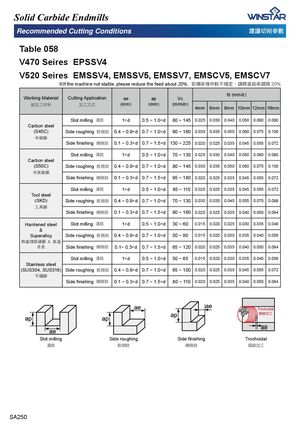

Solid Carbide Endmills Recommended Cutting Conditions ら峿⎖⏙╒㜇 Table 058 V470 Seires EPSSV4 V520 Seires EMSSV4, EMSSV5, EMSSV7, EMSCV5, EMSCV7 ʰIf the machine not stable, please reduce the feed about 20%. 呴㯮〙㨬₅悒ᾜ䯸⴩虇屚ⶖ懁仵䔖屎柜 20% Working Material Cutting Application ae ap Vc fz (mm/z) 娺␯⽴㣟㜨 ␯⽴㝈ゞ (mm) (mm) (m/min) 4mm 6mm 8mm 10mm 12mm 16mm Slot milling 䀬搠 1×d 0.5 ~ 1.0×d 80 ~ 145 0.025 0.030 0.040 0.050 0.060 0.080 Carbon steel (S45C) Side roughing 並∃搠 0.4 ~ 0.9×d 0.7 ~ 1.0×d 90 ~ 160 0.030 0.035 0.050 0.060 0.075 0.100 ᾼ䩂撋 6LGH¿QLVKLQJ乍∃搠 0.1 ~ 0.3×d 0.7 ~ 1.5×d 130 ~ 225 0.020 0.025 0.035 0.045 0.055 0.072 Slot milling 䀬搠 1×d 0.5 ~ 1.0×d 70 ~ 130 0.025 0.030 0.040 0.050 0.060 0.080 Carbon steel (S50C) Side roughing 並∃搠 0.4 ~ 0.9×d 0.7 ~ 1.0×d 80 ~ 145 0.030 0.035 0.050 0.060 0.075 0.100 ᾼ汧䩂撋 6LGH¿QLVKLQJ乍∃搠 0.1 ~ 0.3×d 0.7 ~ 1.5×d 95 ~ 180 0.020 0.025 0.035 0.045 0.055 0.072 Slot milling 䀬搠 1×d 0.5 ~ 1.0×d 65 ~ 110 0.020 0.025 0.035 0.045 0.055 0.072 Tool steel (SKD) Side roughing 並∃搠 0.4 ~ 0.9×d 0.7 ~ 1.0×d 70 ~ 130 0.030 0.035 0.045 0.055 0.070 0.088 ⽴⌆撋 6LGH¿QLVKLQJ乍∃搠 0.1 ~ 0.3×d 0.7 ~ 1.5×d 90 ~ 160 0.020 0.025 0.035 0.040 0.050 0.064 Hardened steel Slot milling 䀬搠 1×d 0.5 ~ 1.0×d 30 ~ 60 0.015 0.020 0.025 0.030 0.035 0.048 & Superalloy Side roughing 並∃搠 0.4 ~ 0.9×d 0.7 ~ 1.0×d 50 ~ 90 0.015 0.020 0.030 0.035 0.040 0.056 䍀埤䖕汧䧻撋!&!汧䀺 ▗捠 6LGH¿QLVKLQJ乍∃搠 0.1~ 0.3×d 0.7 ~ 1.5×d 65 ~ 120 0.020 0.025 0.035 0.040 0.050 0.064 Slot milling 䀬搠 1×d 0.5 ~ 1.0×d 50 ~ 65 0.015 0.020 0.030 0.035 0.040 0.056 Stainless steel (SUS304, SUS316) Side roughing 並∃搠 0.4 ~ 0.9×d 0.7 ~ 1.0×d 65 ~ 100 0.020 0.025 0.035 0.045 0.055 0.072 ᾜ斌撋 6LGH¿QLVKLQJ乍∃搠 0.1 ~ 0.3×d 0.7 ~ 1.5×d 80 ~ 110 0.020 0.025 0.035 0.040 0.050 0.064 Trochoidal 㚉佩␯⽴ Slot milling Side roughing 6LGH¿QLVKLQJ Trochoidal 䀬搠 並∃搠 乍∃搠 㚉佩␯⽴ SA250
