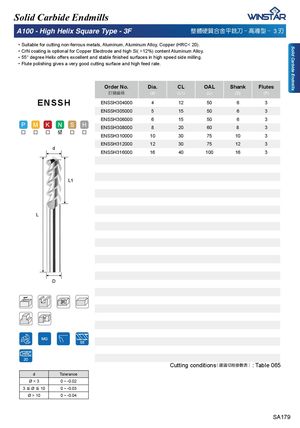

Solid Carbide Endmills Solid Carbide Endmills A100 - High Helix Square Type - 3F 㜃汣䧻幹▗捠。搠⎏ . 汧⶝⤚ .!3 ⎒ ᅚSuitable for cutting non-ferrous metals, Aluminum, Aluminum Alloy, Copper (HRC< 20). ᅚCrN coating is optional for Copper Electrode and high Si( >12%) content Aluminum Alloy. ᅚ ƒGHJUHH+HOL[RႇHUVH[FHOOHQWDQGVWDEOH¿QLVKHGVXUIDFHVLQKLJKVSHHGVLGHPLOOLQJ ᅚFlute polishing gives a very good cutting surface and high feed rate. Order No. Dia. CL OAL Shank Flutes 宑庋佷䩋 (d) (L1) (L) (D) (F) ENSSH ENSSH304000 4 12 50 6 3 ENSSH305000 5 15 50 6 3 ENSSH306000 6 15 50 6 3 ENSSH308000 8 20 60 8 3 ENSSH310000 10 30 75 10 3 ENSSH312000 12 30 75 12 3 d ENSSH316000 16 40 100 16 3 L1 L D Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 065 d Tolerance Ø<3 0 ~ -0.02 3 Ŝ Ø Ŝ 10 0 ~ -0.03 Ø > 10 0 ~ -0.04 SA179
