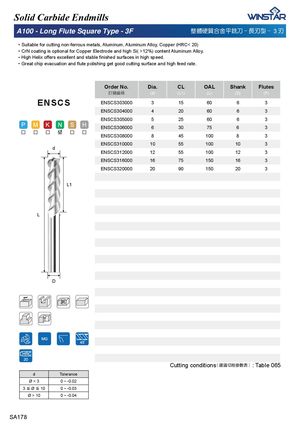

Solid Carbide Endmills A100 - Long Flute Square Type - 3F 㜃汣䧻幹▗捠。搠⎏ . 朆⎒⤚ .!3 ⎒ ᅚSuitable for cutting non-ferrous metals, Aluminum, Aluminum Alloy, Copper (HRC< 20) ᅚCrN coating is optional for Copper Electrode and high Si( >12%) content Aluminum Alloy. ᅚ +LJK+HOL[RႇHUVH[FHOOHQWDQGVWDEOH¿QLVKHGVXUIDFHVLQKLJKVSHHG ᅚ *UHDWFKLSHYDFXDWLRQDQGÀXWHSROLVKLQJJHWJRRGFXWWLQJVXUIDFHDQGKLJKIHHGUDWH Order No. Dia. CL OAL Shank Flutes 宑庋佷䩋 (d) (L1) (L) (D) (F) ENSCS ENSCS303000 3 15 60 6 3 ENSCS304000 4 20 60 6 3 ENSCS305000 5 25 60 6 3 ENSCS306000 6 30 75 6 3 ENSCS308000 8 45 100 8 3 ENSCS310000 10 55 100 10 3 d ENSCS312000 12 55 100 12 3 ENSCS316000 16 75 150 16 3 ENSCS320000 20 90 150 20 3 L1 L D Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 065 d Tolerance Ø<3 0 ~ -0.02 3 Ŝ Ø Ŝ 10 0 ~ -0.03 Ø > 10 0 ~ -0.04 SA178
