Каталог Winstar монолитный инструмент 2020 - страница 190

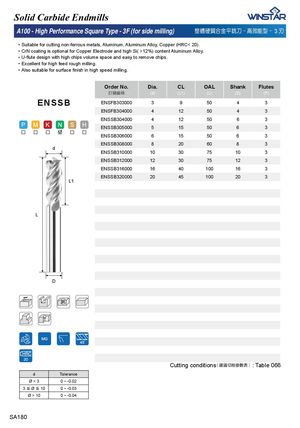

Solid Carbide Endmills A100 - High Performance Square Type - 3F (for side milling) 㜃汣䧻幹▗捠。搠⎏ . 汧㛗劌⤚ .!3 ⎒ ᅚSuitable for cutting non-ferrous metals, Aluminum, Aluminum Alloy, Copper (HRC< 20). ᅚCrN coating is optional for Copper Electrode and high Si( >12%) content Aluminum Alloy. ᅚ 8ÀXWHGHVLJQZLWKKLJKFKLSVYROXPHVSDFHDQGHDV\WRUHPRYHFKLSV ᅚExcellent for high feed rough milling. ᅚ $OVRVXLWDEOHIRUVXUIDFH¿QLVKLQKLJKVSHHGPLOOLQJ Order No. Dia. CL OAL Shank Flutes 宑庋佷䩋 (d) (L1) (L) (D) (F) ENSSB ENSFB303000 3 9 50 4 3 ENSFB304000 4 12 50 4 3 ENSSB304000 4 12 50 6 3 ENSSB305000 5 15 50 6 3 ENSSB306000 6 15 50 6 3 ENSSB308000 8 20 60 8 3 d ENSSB310000 10 30 75 10 3 ENSSB312000 12 30 75 12 3 ENSSB316000 16 40 100 16 3 ENSSB320000 20 45 100 20 3 L1 L D Cutting conditions) ら峿⎖⏙╒㜇姷 * : Table 066 d Tolerance Ø<3 0 ~ -0.02 3 Ŝ Ø Ŝ 10 0 ~ -0.03 Ø > 10 0 ~ -0.04 SA180
