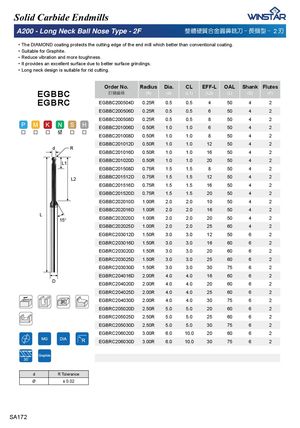

Solid Carbide Endmills A200 - Long Neck Ball Nose Type - 2F 㜃汣䧻幹▗捠⢢烊搠⎏ . 朆槇⤚ .!2 ⎒ ᅚ The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating. ᅚ Suitable for Graphite. ᅚ Reduce vibration and more toughness. ᅚ It provides an excellent surface due to better surface grindings. ᅚ Long neck design is suitable for rid cutting. Order No. Radius Dia. CL EFF-L OAL Shank Flutes EGBBC 宑庋佷䩋 (R) (d) (L1) (L2) (L) (D) (F) EGBRC EGBBC200504D 0.25R 0.5 0.5 4 50 4 2 EGBBC200506D 0.25R 0.5 0.5 6 50 4 2 EGBBC200508D 0.25R 0.5 0.5 8 50 4 2 EGBBC201006D 0.50R 1.0 1.0 6 50 4 2 EGBBC201008D 0.50R 1.0 1.0 8 50 4 2 EGBBC201012D 0.50R 1.0 1.0 12 50 4 2 d R EGBBC201016D 0.50R 1.0 1.0 16 50 4 2 EGBBC201020D 0.50R 1.0 1.0 20 50 4 2 L1 EGBBC201508D 0.75R 1.5 1.5 8 50 4 2 L2 EGBBC201512D 0.75R 1.5 1.5 12 50 4 2 EGBBC201516D 0.75R 1.5 1.5 16 50 4 2 EGBBC201520D 0.75R 1.5 1.5 20 50 4 2 EGBBC202010D 1.00R 2.0 2.0 10 50 4 2 EGBBC202016D 1.00R 2.0 2.0 16 50 4 2 L 15° EGBBC202020D 1.00R 2.0 2.0 20 50 4 2 EGBBC202025D 1.00R 2.0 2.0 25 60 4 2 EGBRC203012D 1.50R 3.0 3.0 12 50 6 2 EGBRC203016D 1.50R 3.0 3.0 16 60 6 2 EGBRC203020D 1.50R 3.0 3.0 20 60 6 2 EGBRC203025D 1.50R 3.0 3.0 25 60 6 2 EGBRC203030D 1.50R 3.0 3.0 30 75 6 2 EGBRC204016D 2.00R 4.0 4.0 16 60 6 2 D EGBRC204020D 2.00R 4.0 4.0 20 60 6 2 EGBRC204025D 2.00R 4.0 4.0 25 60 6 2 EGBRC204030D 2.00R 4.0 4.0 30 75 6 2 EGBRC205020D 2.50R 5.0 5.0 20 60 6 2 EGBRC205025D 2.50R 5.0 5.0 25 60 6 2 EGBRC205030D 2.50R 5.0 5.0 30 75 6 2 EGBRC206020D 3.00R 6.0 10.0 20 60 6 2 EGBRC206030D 3.00R 6.0 10.0 30 75 6 2 d R Tolerance Ø ± 0.02 SA172
